267-05960 | Valve assy 2W NO, 2-1/2" 63Cv Eq Pct SS Trim Flanged Prop El-Hydraul Act NSR | Siemens

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), non-spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally open, 2-1/2-inch, 63 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage characteristic, stainless steel trim, and flanged end connections.

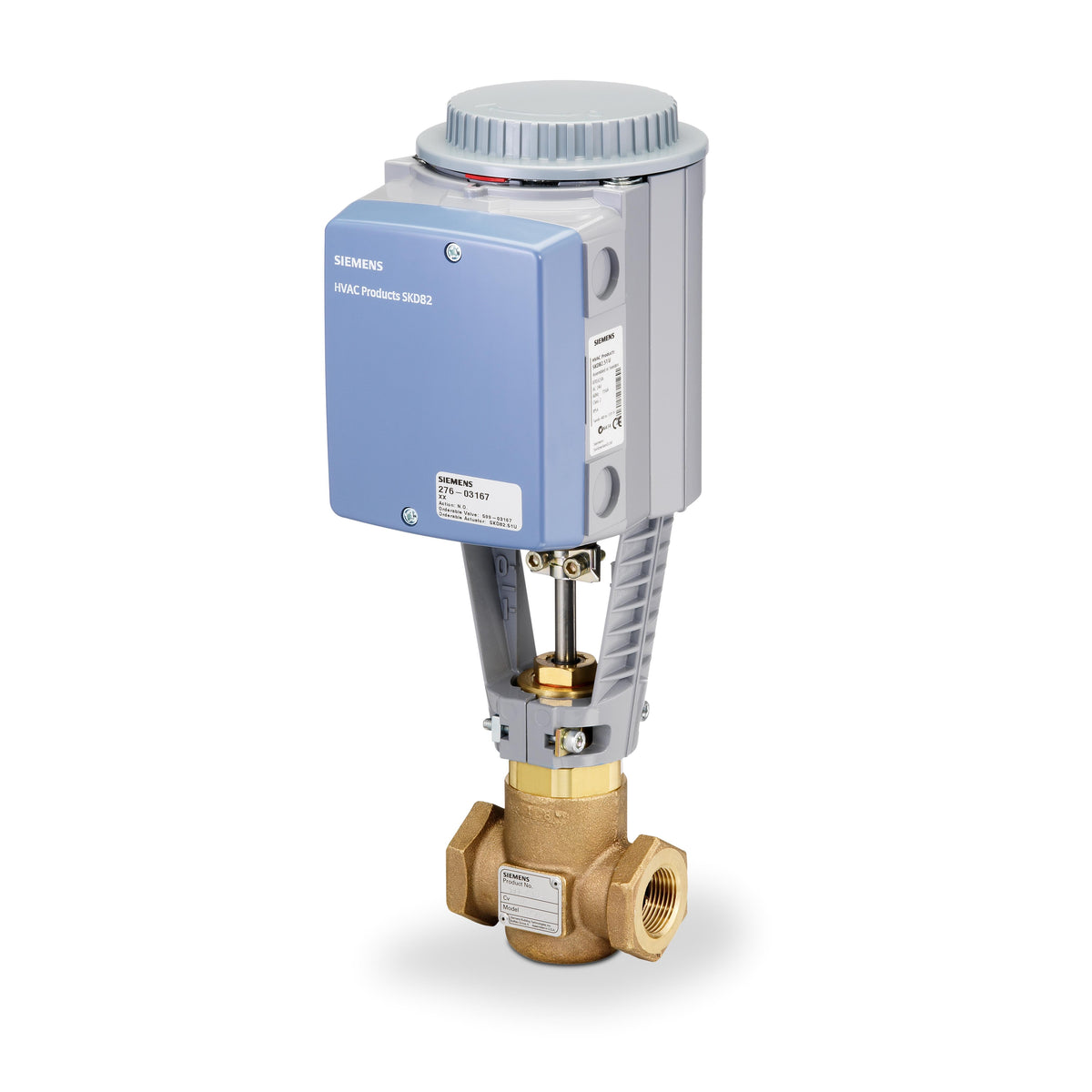

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 267-05960

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 267-05960 Documents

Datasheet(Flowrite VF 599 Series Two-Way Valves 2-1/2 to 6-inch Flanged Iron Body Technical Instructions)Datasheet(Flowrite SKD Valve Proportional Control Technical Instructions)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin)Datasheet for Valve(Flowrite VF 599 series Valves. 2-1/2 to 6-Inch. Flanged. ANSI Class 250. Iron Body Submittal Sheet)Datasheet for Actuator(Electrohydraulic actuators SKD..) More Info

Overview

Details for 267-05960

Valve assy 2W NO, 2-1/2" 63Cv Eq Pct SS Trim Flanged Prop El-Hydraul Act NSR

Specifications

Valve Body Style: Stroke-Globe
End Connection: Flanged
Connecting thread: Direct-coupled universal bonnet
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
Medium: Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate: Class IV (0…0.01% of volumetric flow)
Leakage rate, class: Class IV (0…0.01% of volumetric flow)
Rangeability: 100:1
High temperature: NO
Port Configuration: 2-Way Normally open
Medium temperature: 20…250 ºF
Stroke: 20 mm, 0.75 " mm
Stroke, inch: 0.75 "
Stroke, mm: 20 mm
Valve Actuator Type: Electronic
Supply Voltage: 24 VAC
Positioning time: Open:30 s, Close:15 s
Power consumption: 17 VA
Material, housing: Cast iron ASTM A126 Class B
