267-03111 | Valve assy 2W NO, 1/2" 4Cv Eq Pct SS Trim FxF, Prop El-Hydraul Act NSR | Siemens

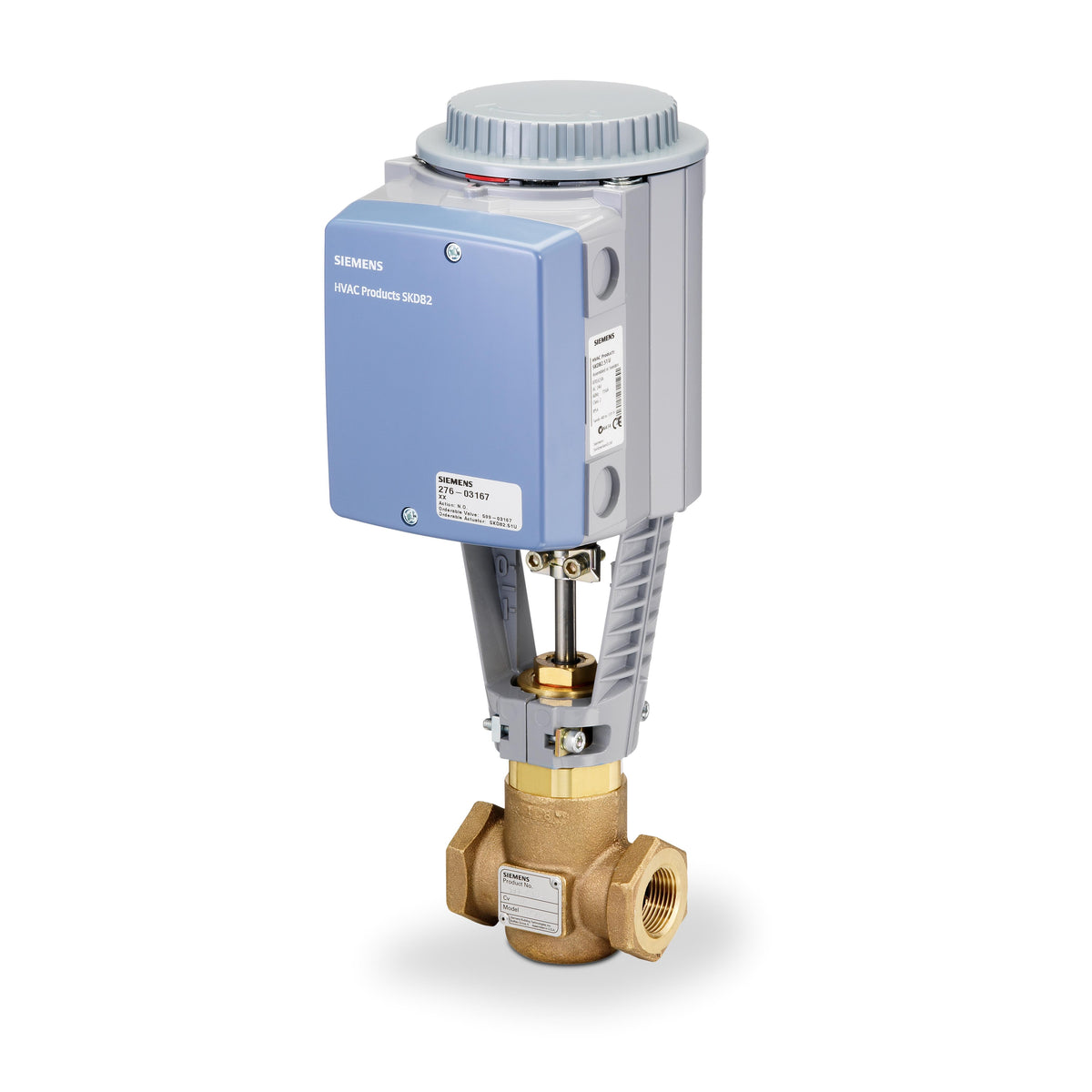

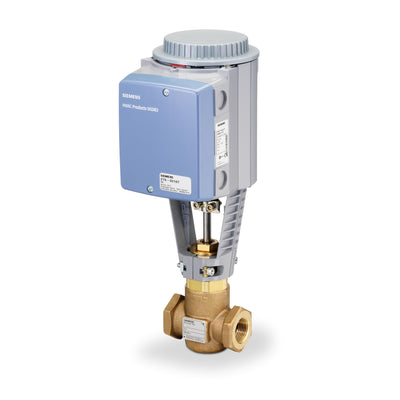

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), non-spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally open, 1/2-inch, 4 Cv valve assembly is ANSI Class 250 and has an equal percentage characteristic, stainless steel trim, and female x female end connections.

Siemens | 267-03111
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 267-03111

Overview

Details for 267-03111

Valve assy 2W NO, 1/2" 4Cv Eq Pct SS Trim FxF, Prop El-Hydraul Act NSR

Specifications

Valve Body Style
Stroke-Globe
End Connection
FxF
Connecting thread
Direct-coupled universal bonnet
Material, valve body
UNS CA 844 bronze
Material, inside set
Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium
Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Port Configuration
2-Way Normally open
Medium temperature
20…250 ºF
Stroke
3/4 in
Valve Actuator Type
Electronic
Supply Voltage
24 VAC
Positioning time
Power stroke 30 s, Return stroke 15 s
Power consumption
18 VA
