267-03074 | Valve assy 2W NC 1/2" 2.5Cv Lin SS Trim Hi Temp Pkg FxF Prop El-Hydraul Act NSR | Siemens

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), non-spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally closed, 1/2-inch, 2.5 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and female x female end connections.

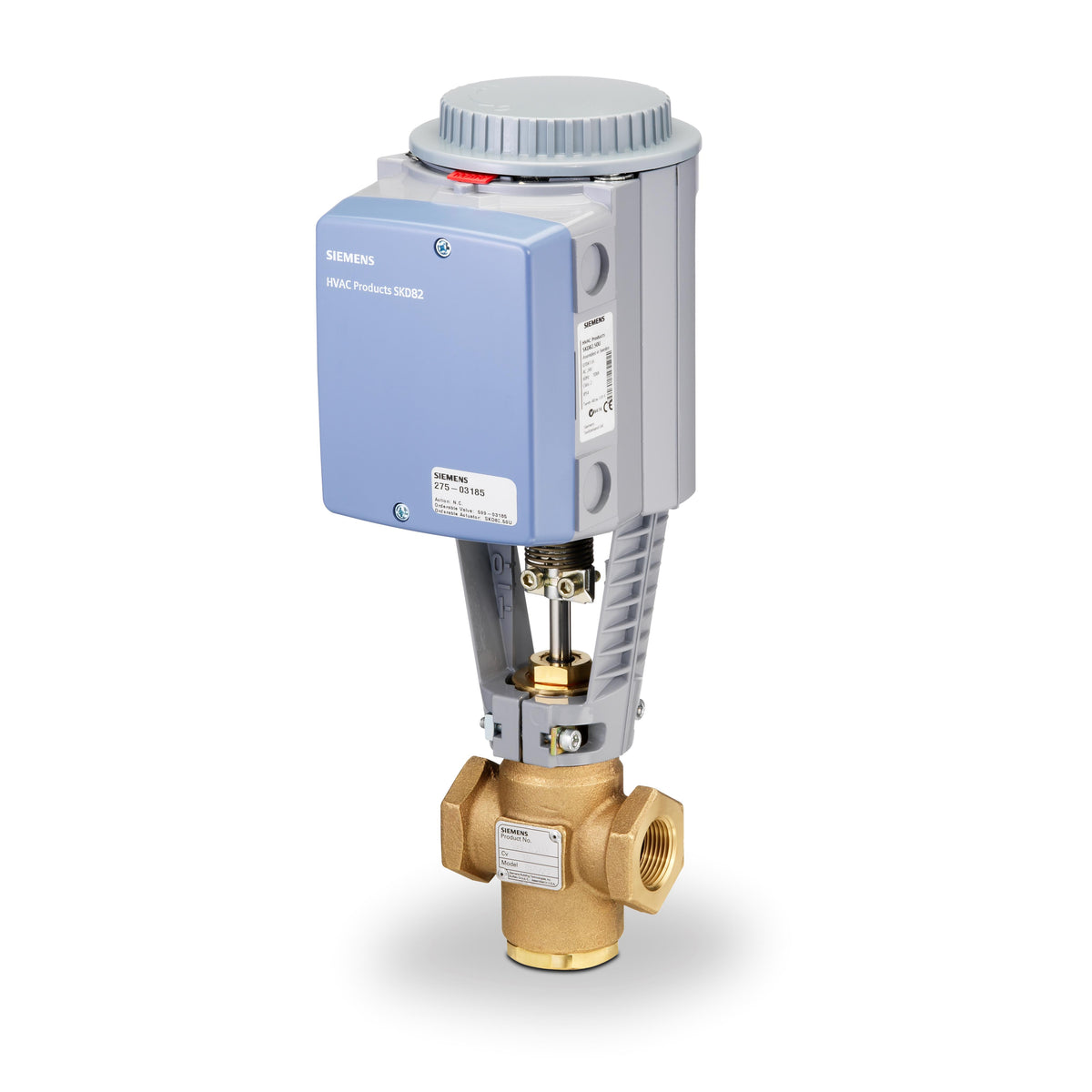

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 267-03074

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 267-03074 Documents

Datasheet(Flowrite SKD Valve Proportional Control Technical Instructions)Datasheet(Flowrite 599 Series 2-way Valves 1/2 to 2-Inch Bronze Body. Technical Instructions)Datasheet(Flowrite Valve and Selection TB 255. Technical Bulletin)Installation instruction(SKD…U Electronic Valve Installation Instructions)Datasheet for Actuator(Electrohydraulic actuators SKD..) Installation Instructions More Info

Overview

Details for 267-03074

Valve assy 2W NC 1/2" 2.5Cv Lin SS Trim Hi Temp Pkg FxF Prop El-Hydraul Act NSR

Specifications

Valve Body Style: Stroke-Globe
End Connection: FxF
Connecting thread: Direct-coupled universal bonnet
Material, valve body: UNS CA 844 bronze
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium: Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate: Class IV (0.01% of Cv)
Rangeability: >100:1
High temperature: YES
Port Configuration: 2-Way Normally closed
Medium temperature: 20…337 ºF
Stroke: 3/4 in
Valve Actuator Type: Electronic
Supply Voltage: 24 VAC
Positioning time: Power stroke 30 s, Return stroke 15 s
Power consumption: 18 VA
