599-07336 | 599-07336 3 PICV ANSI 250 | Siemens
Pressure Independent Control Valve, 3 inch, ANSI 250, 195 GPM maximum flow (field adjustable as low as 31GPM), w/ 3 P/T ports

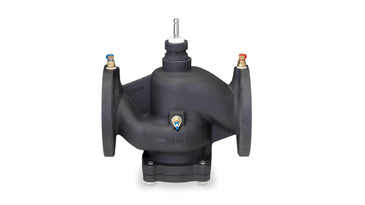

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-07336
Overview Details for 599-07336
599-07336 3 PICV ANSI 250
Pressure Independent Control Valve, 3 inch, ANSI 250, 195 GPM maximum flow (field adjustable as low as 31GPM), w/ 3 P/T ports
Specifications
- Valve Size
- 3 in
- Port Configuration
- 2-Way Normally open
- End Connection
- Flanged
- Material, valve body
- Cast Iron
- Trim Material
- Brass
- Material, inside set
- Stem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
- Flow Characteristic
- Linear
- Medium
- Water , Water with anti-freeze
- Max GPM
- 195 gpm
- Min GPM
- 31 gpm
- Preset GPM
- 195 gpm
- Pressure Class
- ANSI 250
- Leakage rate
- Class IV (0.01% of Cv)
- Max. Differential Pressure, Liquid
- 90 psi
- Medium temperature
- 34…250 ºF
- Stroke
- 3/4 in., 20 mm
- Close-off Pressure
- 100 psi
- Dimensions (W x H x D)
- 12.5 x 8.43 x 8.25 in
