599-07332 | 599-07332 4 PICV ANSI 125 | Siemens

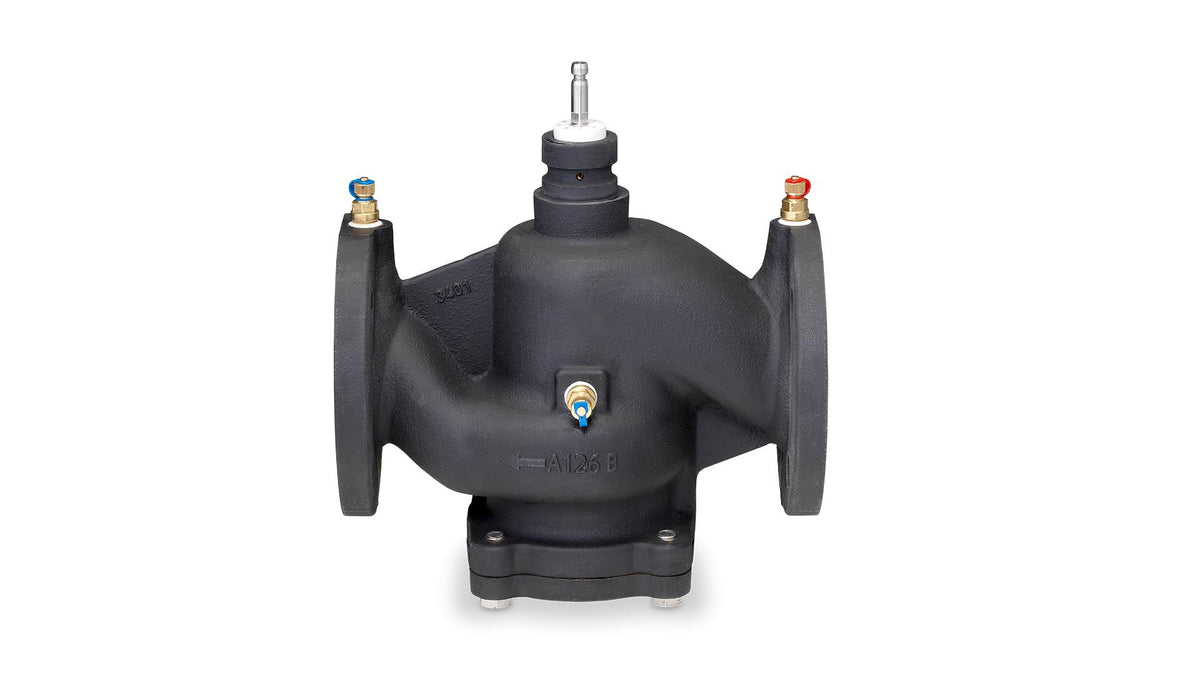

Pressure Independent Control Valve, 4 inch, ANSI 125, 370 GPM maximum flow (field adjustable as low as 63 GPM), w/ 3 P/T ports

Brand: SiemensSKU: 599-07332
Siemens | 599-07332
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-07332
Jump to: Overview & Specifications Reviews

Overview Details for 599-07332

599-07332 4 PICV ANSI 125

Pressure Independent Control Valve, 4 inch, ANSI 125, 370 GPM maximum flow (field adjustable as low as 63 GPM), w/ 3 P/T ports

Specifications

Valve Size
4 in
Port Configuration
2-Way Normally open
End Connection
Flanged
Material, valve body
Cast Iron
Trim Material
Brass
Material, inside set
Stem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
Flow Characteristic
Linear
Medium
Water , Water with anti-freeze
Max GPM
370 gpm
Min GPM
63 gpm
Preset GPM
370 gpm
Pressure Class
ANSI 125
Leakage rate
Class IV (0.01% of Cv)
Max. Differential Pressure, Liquid
90 psi
Medium temperature
34…250 ºF
Stroke
1-1/2 in., 40 mm
Close-off Pressure
100 psi
Dimensions (W x H x D)
13.86 x 11.73 x 9 in
