599-07330 | 599-07330 2.5 PICV ANSI 125 | Siemens

Pressure Independent Control Valve, 2-1/2 inch, ANSI 125, 132 GPM maximum flow (field adjustable as low as 21 GPM), w/ 3 P/T ports

Siemens | 599-07330

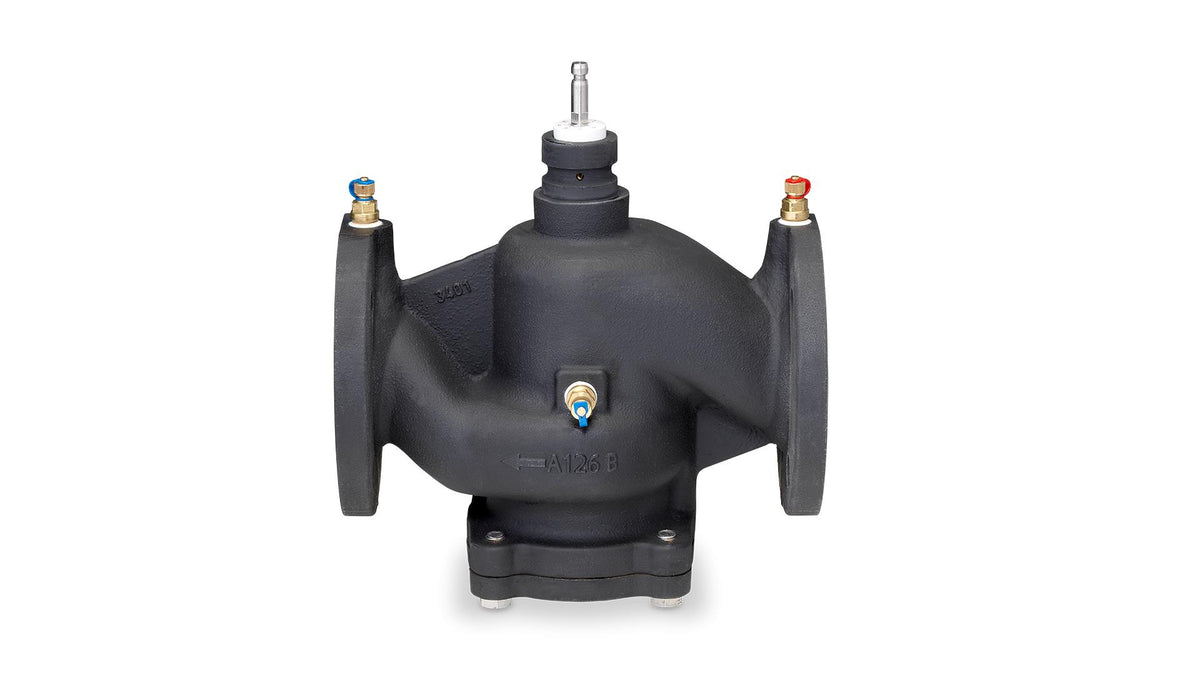

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-07330
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens 599-07330 Documents

Datasheet(Pressure Independent Control Series 2-Way Flanged Valves and Electromotoric Valve Actuators Specification Sheet)Datasheet(Pressure Independent Control Series. Two-Way Cast Iron Flanged Bodies. ANSI 125 and 250 Technical Instructions)Declarations and Certificates(Control valve with flanged connections) More Info

Overview

Details for 599-07330

599-07330 2.5 PICV ANSI 125

Pressure Independent Control Valve, 2-1/2 inch, ANSI 125, 132 GPM maximum flow (field adjustable as low as 21 GPM), w/ 3 P/T ports

Specifications

Valve Size
2.5 in
Port Configuration
2-Way Normally open
End Connection
Flanged
Material, valve body
Cast Iron
Trim Material
Brass
Material, inside set
Stem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
Flow Characteristic
Linear
Medium
Water , Water with anti-freeze
Max GPM
132 gpm
Min GPM
21 gpm
Preset GPM
132 gpm
Pressure Class
ANSI 125
Leakage rate
Class IV (0.01% of Cv)
Max. Differential Pressure, Liquid
90 psi
Medium temperature
34…250 ºF
Stroke
3/4 in., 20 mm
Close-off Pressure
100 psi
Dimensions (W x H x D)
10.87 x 8.24 x 7.01 in
