371-07331 | 371-07331 3 PICV ANSI 125 0-10V NSR | Siemens

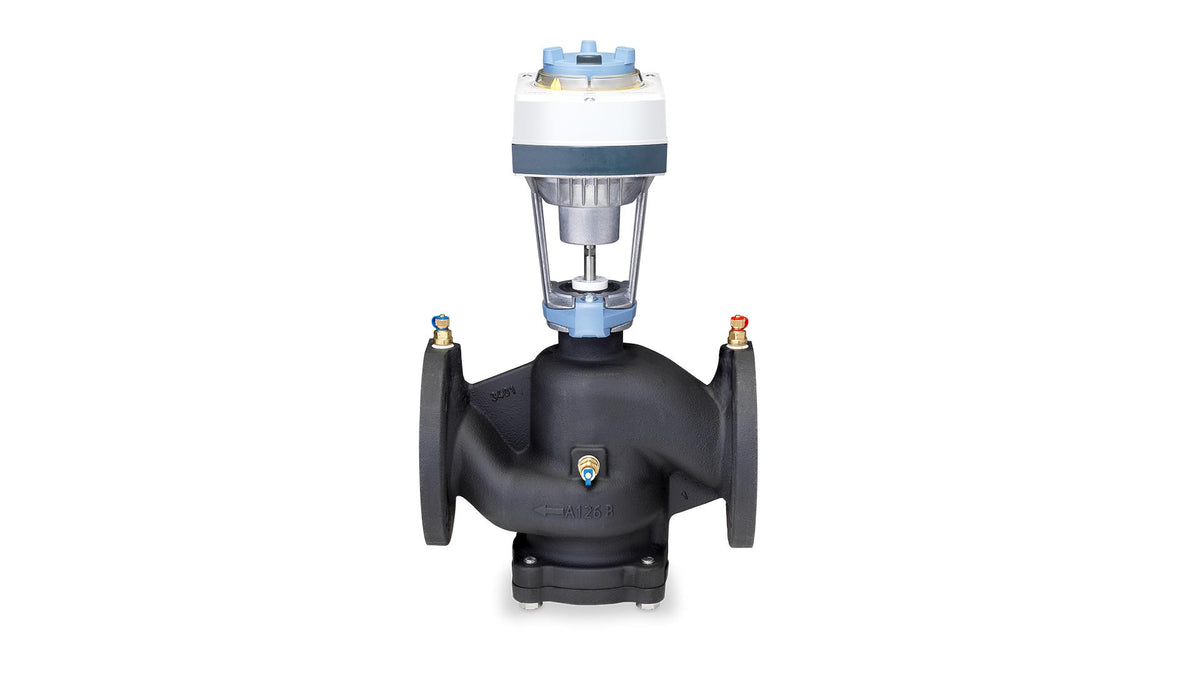

Pressure Independent Control Valve, 3 inch, ANSI 125, 195 GPM maximum flow (field adjustable), w/ 3 P/T ports, with 24 Vac Electronic SAX Non-spring Return Actuator, 0-10V or 4-20mA

Brand: SiemensSKU: 371-07331

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 371-07331

Jump to: Overview & Specifications Reviews

Overview Details for 371-07331

371-07331 3 PICV ANSI 125 0-10V NSR

Pressure Independent Control Valve, 3 inch, ANSI 125, 195 GPM maximum flow (field adjustable), w/ 3 P/T ports, with 24 Vac Electronic SAX Non-spring Return Actuator, 0-10V or 4-20mA

Specifications

Valve Size: 3 in
Port Configuration: 2-Way Normally open
End Connection: Flanged
Material, valve body: Cast Iron
Trim Material: Brass
Material, inside set: Stem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
Flow Characteristic: Linear
Medium: Water , Water with anti-freeze
Max GPM: 195 gpm
Min GPM: 31 gpm
Preset GPM: 195 gpm
Pressure Class: ANSI 125
Max. Inlet Pressure (absolute), Liquid: 200 psi
Max. Differential Pressure, Liquid: 90 psi
Medium temperature: 34…250 ºF
Stroke: 3/4 in., 20 mm
Close-off Pressure: 100 psi
Valve Actuator Type: Electronic
Actuation Style: Linear
Control Signal: 0...10 Vdc
Fail Safe: No
Positioning time: 30 s
Power consumption: 8 VA
Positioning signal: 0...10 V DC, 4…20 mA
Dimensions (W x H x D): 11.75 x 21.5 x 7.5 in
