239-07337 | 239-07337 4 PICV ANSI 250 NC SR | Siemens

Pressure Independent Control Valve, 4 inch, ANSI 250, 370 GPM maximum flow (field adjustable), w/ 3 P/T ports, with 24 Vac Electronic SQV Spring Return Actuator, 3P (floating), 0-10V or 4-20mA, Fail Closed

Brand: SiemensSKU: 239-07337

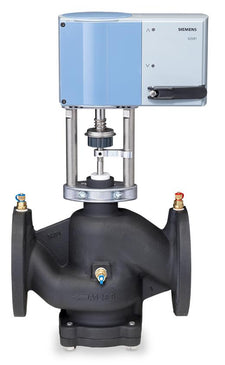

Siemens | 239-07337
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 239-07337
Jump to: Overview & Specifications Reviews

Overview Details for 239-07337

239-07337 4 PICV ANSI 250 NC SR

Pressure Independent Control Valve, 4 inch, ANSI 250, 370 GPM maximum flow (field adjustable), w/ 3 P/T ports, with 24 Vac Electronic SQV Spring Return Actuator, 3P (floating), 0-10V or 4-20mA, Fail Closed

Specifications

Valve Size
4 in
Port Configuration
2-Way Normally closed
End Connection
Flanged
Material, valve body
Cast Iron
Trim Material
Brass
Material, inside set
Stem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
Flow Characteristic
Linear
Medium
Water , Water with anti-freeze
Max GPM
370 gpm
Min GPM
63 gpm
Preset GPM
370 gpm
Pressure Class
ANSI 250
Leakage rate
Class IV (0.01% of Cv)
Max. Inlet Pressure (absolute), Liquid
200 psi
Max. Differential Pressure, Liquid
90 psi
Medium temperature
34…250 ºF
Stroke
1-1/2 in., 40 mm
Close-off Pressure
100 psi
Valve Actuator Type
Electronic
Actuation Style
Linear
Control Signal
Floating control , 0...10 V
Fail Safe
Yes
Supply Voltage
24 VAC/DC
Positioning time
40 s
Power consumption
20 VA
Positioning signal
3-position, 0...10 V DC, 4…20 mA
Dimensions (W x H x D)
14.4 x 25.91 x 10 in
