239-07335 | 239-07335 2.5 PICV ANSI 250 NC SR | Siemens

Pressure Independent Control Valve, 2-1/2 inch, ANSI 250, 132 GPM maximum flow (field adjustable), w/ 3 P/T ports, with 24 Vac Electronic SQV Spring Return Actuator, 3P (floating), 0-10V or 4-20mA, Fail Closed

Brand: SiemensSKU: 239-07335

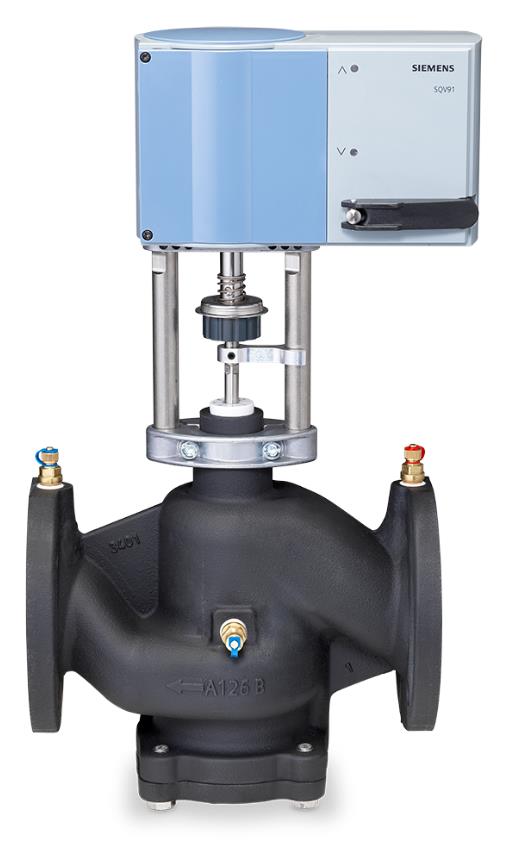

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 239-07335

Jump to: Overview & Specifications Reviews

Overview Details for 239-07335

239-07335 2.5 PICV ANSI 250 NC SR

Specifications

Valve Size: 2.5 in
Port Configuration: 2-Way Normally closed
End Connection: Flanged
Material, valve body: Cast Iron
Trim Material: Brass
Material, inside set: Stem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
Flow Characteristic: Linear
Medium: Water , Water with anti-freeze
Max GPM: 132 gpm
Min GPM: 21 gpm
Preset GPM: 132 gpm
Pressure Class: ANSI 250
Leakage rate: Class IV (0.01% of Cv)
Max. Inlet Pressure (absolute), Liquid: 200 psi
Max. Differential Pressure, Liquid: 90 psi
Medium temperature: 34…250 ºF
Stroke: 3/4 in., 20 mm
Close-off Pressure: 100 psi
Valve Actuator Type: Electronic
Actuation Style: Linear
Control Signal: Floating control , 0...10 V
Fail Safe: Yes
Supply Voltage: 24 VAC/DC
Positioning time: 40 s
Power consumption: 20 VA
Positioning signal: 3-position, 0...10 V DC, 4…20 mA
Dimensions (W x H x D): 11.5 x 23.35 x 7.48 in
