238-07337 | 238-07337 4 PICV ANSI 250 NO SR | Siemens

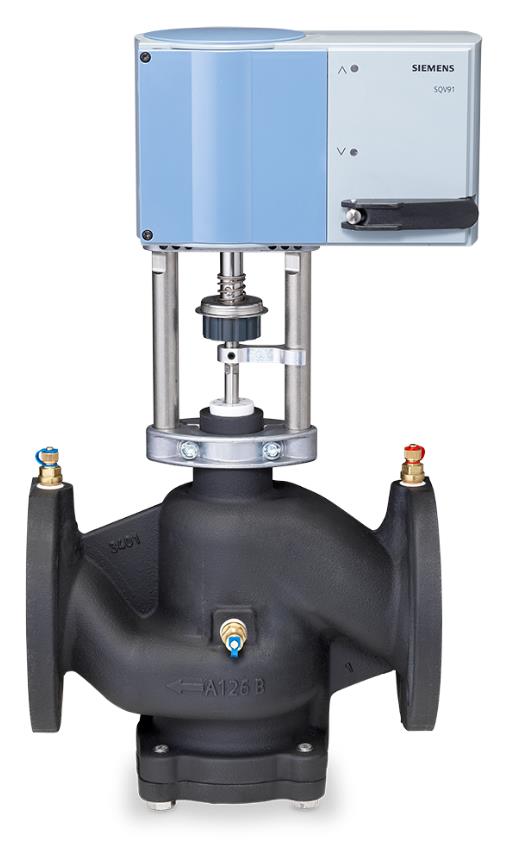

Pressure Independent Control Valve, 4 inch, ANSI 250, 370 GPM maximum flow (field adjustable), w/ 3 P/T ports, with 24 Vac Electronic SQV Spring Return Actuator, 3P (floating), 0-10V or 4-20mA, Fail Open

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 238-07337

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 238-07337 Documents

Datasheet(Pressure Independent Control Series 2-Way Flanged Valves and Electromotoric Valve Actuators Specification Sheet)Datasheet(SQV Series Electronic Valve Actuators (For Use with 2-1/2-Inch to 6-Inch Pressure Independent Control Valves). Technical Instructions)Datasheet(Pressure Independent Control Series. Two-Way Cast Iron Flanged Bodies. ANSI 125 and 250 Technical Instructions)Installation instruction(SQV Series Electronic Valve Actuators Installation Instructions)Datasheet for Actuator(Pressure Independent Control Series 2-Way Flanged Valves and Electromotoric Valve Actuators Specification Sheet) Installation Instructions More Info

Overview

Details for 238-07337

238-07337 4 PICV ANSI 250 NO SR

Specifications

Valve Size: 4 in
Port Configuration: 2-Way Normally open
End Connection: Flanged
Material, valve body: Cast Iron
Trim Material: Brass
Material, inside set: Stem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
Flow Characteristic: Linear
Medium: Water , Water with anti-freeze
Max GPM: 370 gpm
Min GPM: 63 gpm
Preset GPM: 370 gpm
Pressure Class: ANSI 250
Leakage rate: Class IV (0.01% of Cv)
Max. Inlet Pressure (absolute), Liquid: 200 psi
Max. Differential Pressure, Liquid: 90 psi
Medium temperature: 34…250 ºF
Stroke: 1-1/2 in., 40 mm
Close-off Pressure: 100 psi
Valve Actuator Type: Electronic
Actuation Style: Linear
Control Signal: Floating control , 0...10 V
Fail Safe: Yes
Supply Voltage: 24 VAC/DC
Positioning time: 40 s
Power consumption: 20 VA
Positioning signal: 3-position, 0...10 V DC, 4…20 mA
Dimensions (W x H x D): 14.4 x 25.91 x 10 in
