248-00233 | Zone valve, 3-way, 1", 7.0 Cv, NPT w/ 24Vac, SSP61U actuator, 0-10Vdc, NSR | Siemens

Zone valve and actuator assembly. 3-way valve body; NPT connection; Line size 1-inch; Flow rate 7.0 Cv; SSP61U 0-10Vdc, non-spring return actuator, 24Vac, AB- A normally open

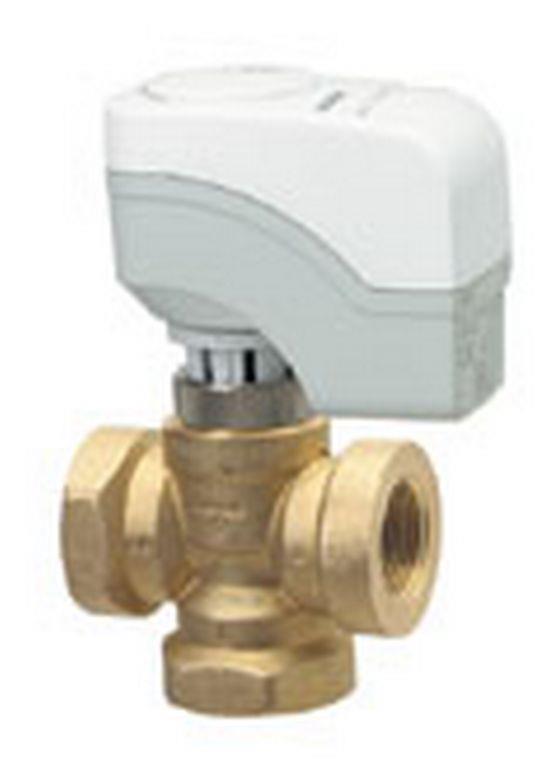

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 248-00233

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 248-00233 Documents

Datasheet(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators)Datasheet(599 Series Zone Valve. Electric Actuator Assembly Selection Technical Bulletin)Datasheet(599 Series Zone Valve Bodies: Two-Way and Three-Way Technical Instructions)Datasheet(Electromotoric actuator. SSE161.05U. SSF161.05U)Mounting instruction(Electromotoric actuator. SSB161.05U. SSE161.05U. SSF161.05U)Datasheet for Valve(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators)Datasheet for Actuator(Electromotoric actuator. SSE161.05U. SSF161.05U) Installation Instructions More Info

Overview

Details for 248-00233

Zone valve, 3-way, 1", 7.0 Cv, NPT w/ 24Vac, SSP61U actuator, 0-10Vdc, NSR

Zone valve and actuator assembly. 3-way valve body; NPT connection; Line size 1-inch; Flow rate 7.0 Cv; SSP61U 0-10Vdc, non-spring return actuator, 24Vac, normally open

Specifications

Valve Type: Three-way
Valve Body Style: Stroke-Globe
Port Configuration: 3-Way Diverting
End Connection: NPT
Material, valve body: Brass
Material, inside set: Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Seat: Metal-to-Metal , Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
Leakage rate: ANSI Class III
Medium temperature: 34…230 ºF
Stroke: 1/10 in
Valve Actuator Type: Electronic
Supply Voltage: 24 VAC
Positioning time: 34 s
Power consumption: 2.5 VA
