599-00214 | 599 Series Zone Valve, 1/2", 2W, 4.0Cv, linear, ANSI 125, 1/10" stroke, NPT | Siemens

599 Series Zone Valve, 1/2-inch, two-way, globe body style, 4.0 Cv, normally open/closed determined by actuator, controlled medium is water or glycol solutions to 50%, linear characteristic, ANSI Class 125, 1/10-inch (2.5 mm) stroke, 44 psi (303 kPa) close-off pressure, NPT end connections, and direct-coupled universal bonnet for actuator connection.

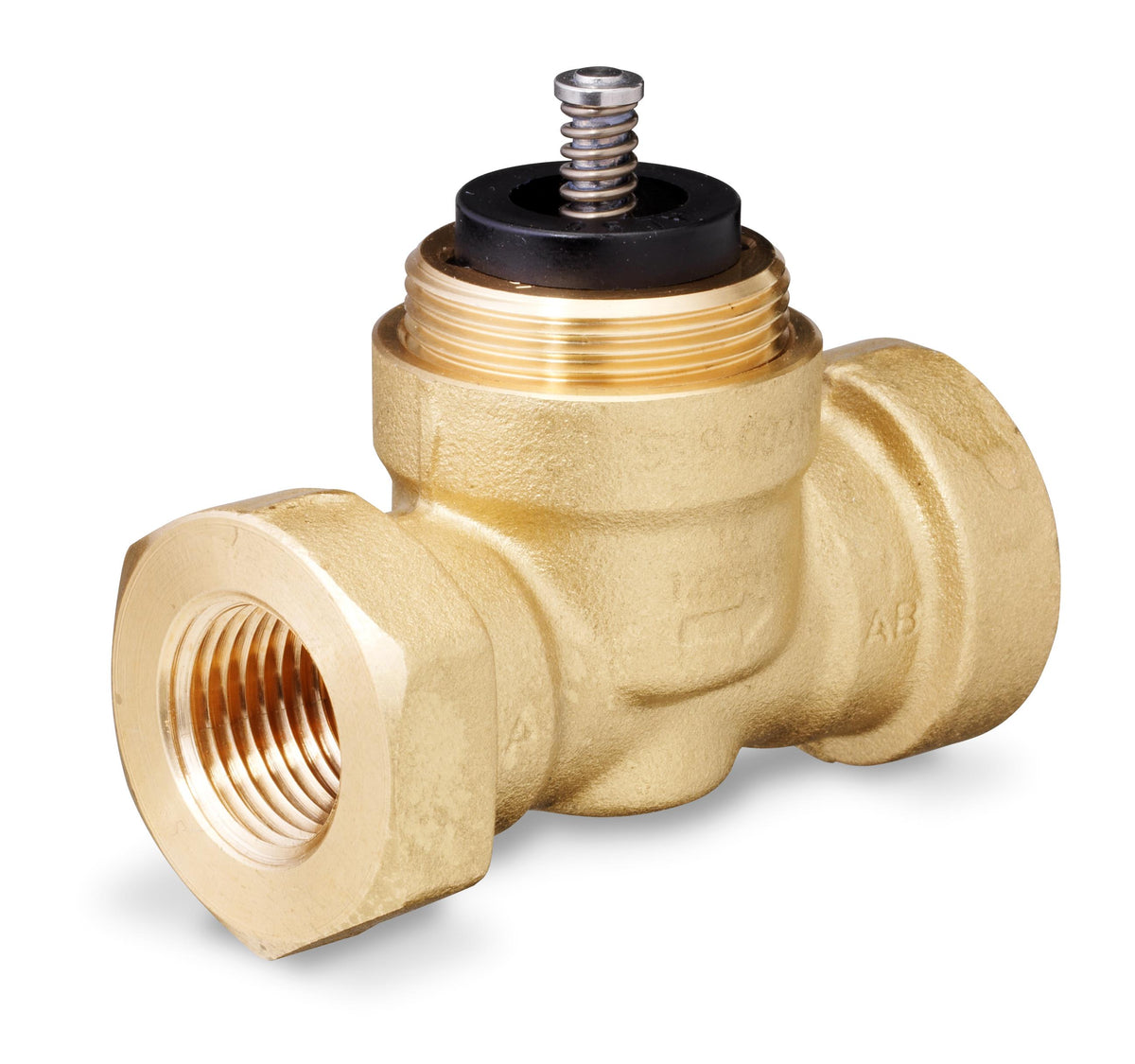

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-00214

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 599-00214 Documents

Datasheet(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators)Datasheet(599 Series Zone Valve. Electric Actuator Assembly Selection Technical Bulletin)Datasheet(599 Series Zone Valve Bodies: Two-Way and Three-Way Technical Instructions) More Info

Overview

Details for 599-00214

599 Series Zone Valve, 1/2", 2W, 4.0Cv, linear, ANSI 125, 1/10" stroke, NPT

Specifications

Valve Size: 0.5 in
Flow Coefficient, Cv: 4
Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally closed
End Connection: NPT
Connecting thread: NPT
Material, valve body: Brass
Trim Material: Brass
Material, inside set: Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Seat: Metal-to-Metal , Packing: EPDM O-ring
Flow Characteristic: Linear
Medium: Water , Water with anti-freeze
DN: 15
Pressure Class: ANSI 125
Leakage rate: ANSI Class III
Leakage rate, class: ANSI Class III
Medium temperature: 34…230 ºF
Stroke: 2.5 mm
Stroke, mm: 2.5 mm
Dimensions (W x H x D): 2.76 x 2.36 x 1.54 in
