245-00232 | Zone valve, 3-way, 3/4", 4.1 Cv, NPT w/ 24Vac 0-10Vdc NSR actuator | Siemens

Zone valve and actuator assembly. 3-way valve body; NPT connection; Line size 0.75-inch; Flow rate 4.1 Cv; SSA61U 0-10Vdc, non-spring return actuator, 24Vac, AB-A normally closed.

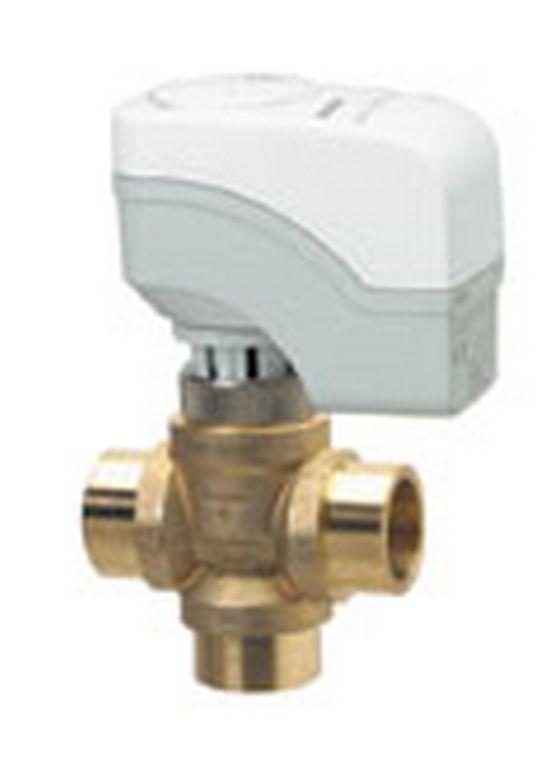

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 245-00232

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 245-00232 Documents

Datasheet(Powermite 599 MT Series Terminal Unit 3-Way Valves. Submittal Sheet)Datasheet(Powermite 599 Series MT Series Terminal Unit Three-way Valves. Technical Instructions)Datasheet(Powermite 599 MT Series Terminal Unit Valve and Assembly Selection Technical Bulletin)Datasheet(Electromotoric actuator. SSE161.05U. SSF161.05U)Datasheet for Actuator(Electromotoric actuator. SSE161.05U. SSF161.05U)Datasheet for Valve(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators) Installation Instructions More Info

Overview

Details for 245-00232

Zone valve, 3-way, 3/4", 4.1 Cv, NPT w/ 24Vac 0-10Vdc NSR actuator

Zone valve and actuator assembly. 3-way valve body; NPT connection; Line size 0.75-inch; Flow rate 4.1 Cv; SSA61U 0-10Vdc, non-spring return actuator, 24Vac, AB-A closed in zero position.

Specifications

Valve Type: Three-way
Valve Body Style: Stroke-Globe
Port Configuration: 3-Way Diverting
End Connection: NPT
Material, valve body: Brass
Material, inside set: Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Seat: Metal-to-Metal , Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
Leakage rate: ANSI Class III
Medium temperature: 34…230 ºF
Stroke: 1/10 in
Valve Actuator Type: Electronic
Supply Voltage: 24 VAC
Positioning time: 34 s
Power consumption: 2.5 VA
