242-00232 | Zone valve, 3-way, 3/4", 4.1 Cv, NPT w/ 24V 2-position SR actuator, fails AB-B | Siemens

Zone valve and actuator assembly. 3-way valve body; NPT connection; Line size 0.75-inch; Flow rate 4.1 Cv; SFA71U 2-position, spring return actuator; 24 Vac; fails AB-A closed.

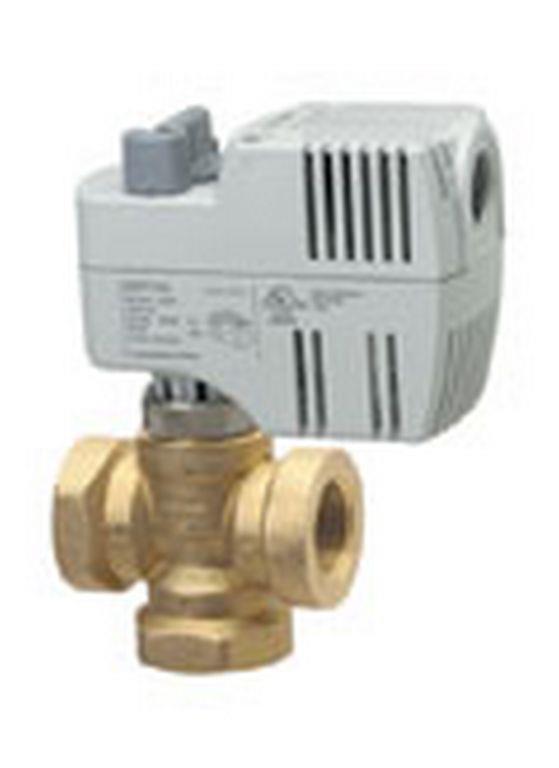

Siemens | 242-00232
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 242-00232

Overview

Details for 242-00232

Zone valve, 3-way, 3/4", 4.1 Cv, NPT w/ 24V 2-position SR actuator, fails AB-B

Zone valve and actuator assembly. 3-way valve body; NPT connection; Line size 0.75-inch; Flow rate 4.1 Cv; SFA11U 2-position, spring return actuator; 24 Vac; fails AB-B.

Specifications

Valve Type
Three-way
Valve Body Style
Stroke-Globe
Port Configuration
3-Way Diverting
End Connection
NPT
Material, valve body
Brass
Material, inside set
Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Seat: Metal-to-Metal , Packing: EPDM O-ring
Medium
Water , Water with anti-freeze
Leakage rate
ANSI Class III
Medium temperature
34…230 ºF
Stroke
1/10 in
Valve Actuator Type
Electronic
Supply Voltage
24 VAC
Positioning time
10 s
Power consumption
9.8 VA
