242-00213 | Zone valve, 2-way, 1", 7.0 Cv, NPT w/ 24V 2-position SR actuator fails NC | Siemens
Zone valve and actuator assembly. 2-way valve body; NPT connection; Line size 1-inch; Flow rate 7.0 Cv; SFA71U 2-position, spring return actuator; 24 Vac; normally closed.

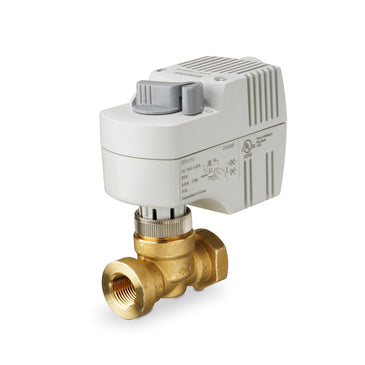

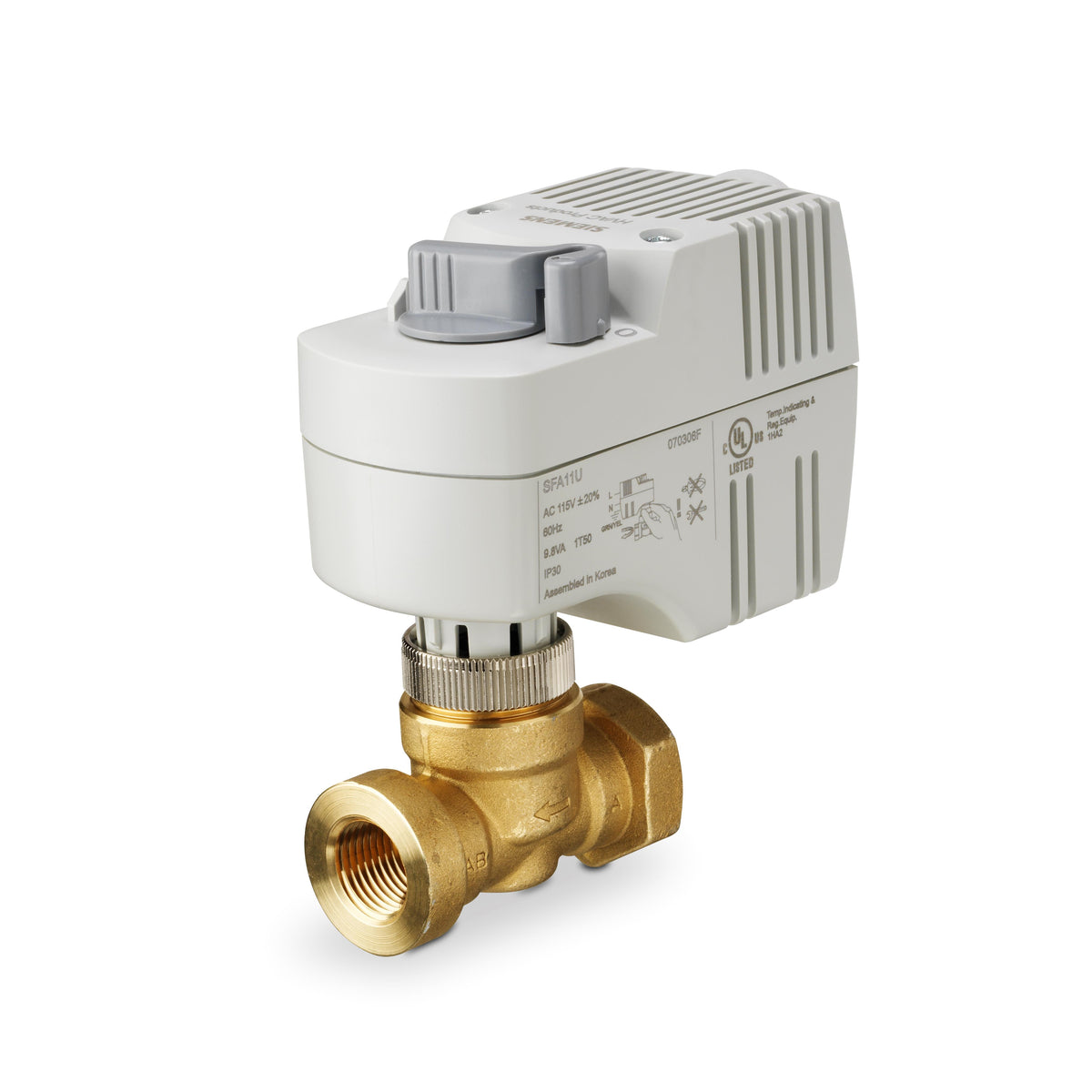

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 242-00213
Documents and manuals
Siemens 242-00213 Documents
Datasheet(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators)Datasheet(599 Series Zone Valve. Electric Actuator Assembly Selection Technical Bulletin)Datasheet(599 Series Zone Valve Bodies: Two-Way and Three-Way Technical Instructions)Datasheet(599 Series Zone Valve SF Series Electronic Valve Actuator. 2-position Control Technical Instructions)Installation instruction(599 Series Zone Valves SFA / SFP Electronic Valve Actuator 2-Position Control Installation Instructions)Datasheet for Valve(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators)Datasheet for Actuator(599 Series Zone Valves 2-Way. 3-Way Electric & Thermic Actuators) Installation Instructions More Info
Overview
Details for 242-00213
Zone valve, 2-way, 1", 7.0 Cv, NPT w/ 24V 2-position SR actuator fails NC
Zone valve and actuator assembly. 2-way valve body; NPT connection; Line size 1-inch; Flow rate 7.0 Cv; SFA11U 2-position, spring return actuator; 24 Vac; normally closed.Specifications
- Valve Type
- Two-way
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally closed
- End Connection
- NPT
- Material, valve body
- Brass
- Material, inside set
- Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Seat: Metal-to-Metal , Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- Leakage rate
- ANSI Class III
- Medium temperature
- 34…230 ºF
- Stroke
- 1/10 in
- Valve Actuator Type
- Electronic
- Normally Open/Normally Closed
- Normally Closed
- Supply Voltage
- 24 VAC
- Positioning time
- 10 s
- Power consumption
- 9.8 VA
