240-00210 | Zone valve, 2-way, 1/2", 1.0 Cv, NPT w/ 115V 2-position SR actuator fails NC | Siemens

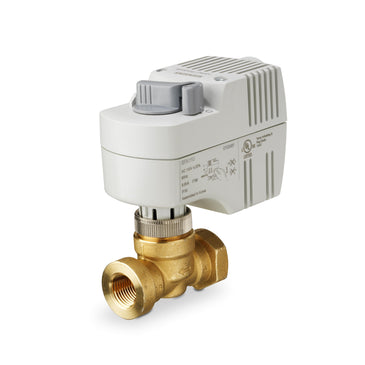

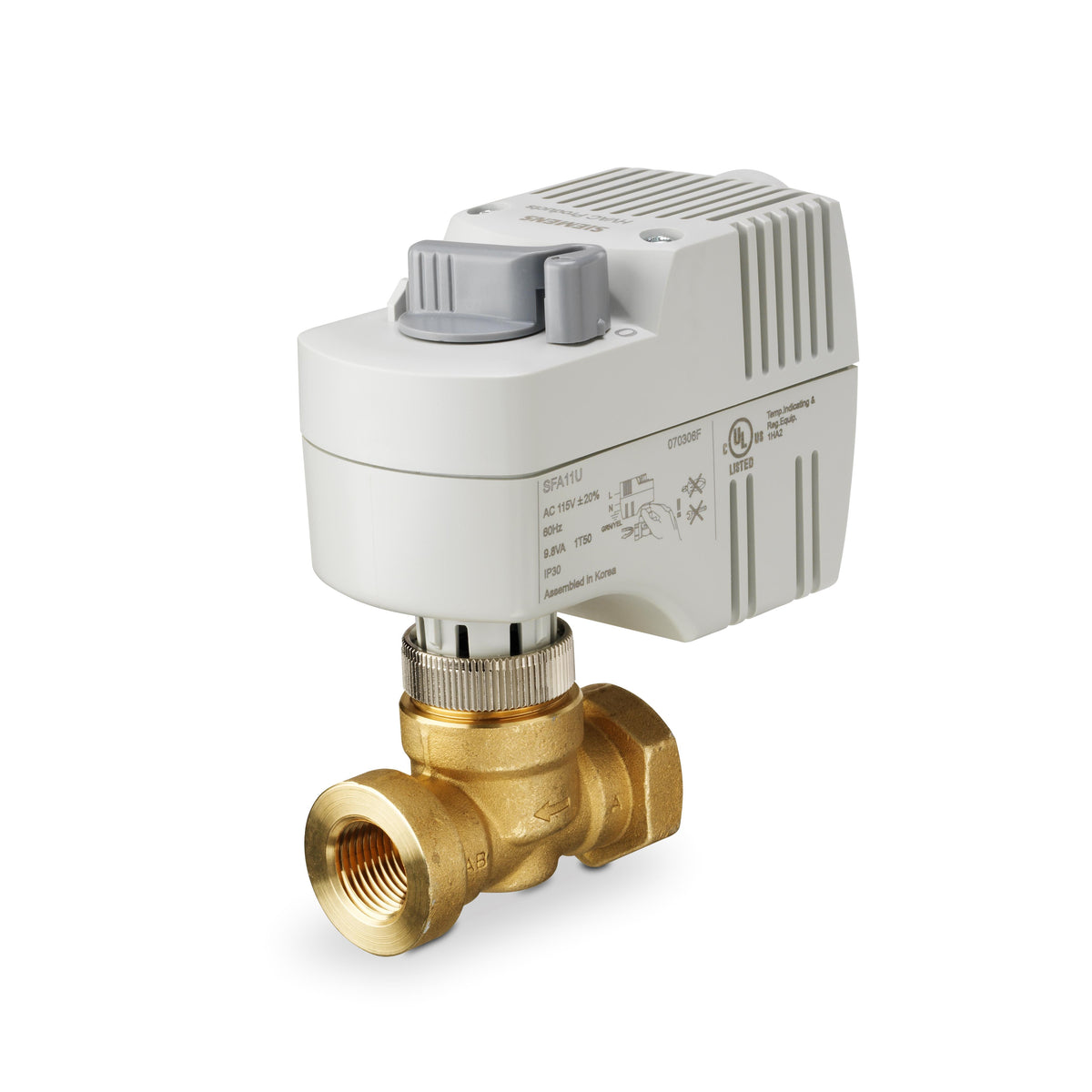

Zone valve and actuator assembly. 2-way valve body; NPT connection; Line size 0.50-inch; Flow rate 1.0 Cv; SFA11U 2-position, spring return actuator; 120Vac; normally closed.

Siemens | 240-00210
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 240-00210

Overview

Details for 240-00210

Zone valve, 2-way, 1/2", 1.0 Cv, NPT w/ 115V 2-position SR actuator fails NC

Zone valve and actuator assembly. 2-way valve body; NPT connection; Line size 0.50-inch; Flow rate 1.0 Cv; SFA11U 2-position, spring return actuator; 115 Vac; normally closed.

Specifications

Valve Type
Two-way
Valve Body Style
Stroke-Globe
Port Configuration
2-Way Normally closed
End Connection
NPT
Material, valve body
Brass
Material, inside set
Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Seat: Metal-to-Metal , Packing: EPDM O-ring
Medium
Water , Water with anti-freeze
Leakage rate
ANSI Class III
Medium temperature
34…230 ºF
Stroke
1/10 in
Valve Actuator Type
Electronic
Normally Open/Normally Closed
Normally Closed
Supply Voltage
120 VAC
Positioning time
10 s
Power consumption
9.8 VA
