238-07322 | PICV, 4 inch, ANSI 250 300 GPM max. flow, with SQV Actuator, Normally Open, SR | Siemens (OBSOLETE)

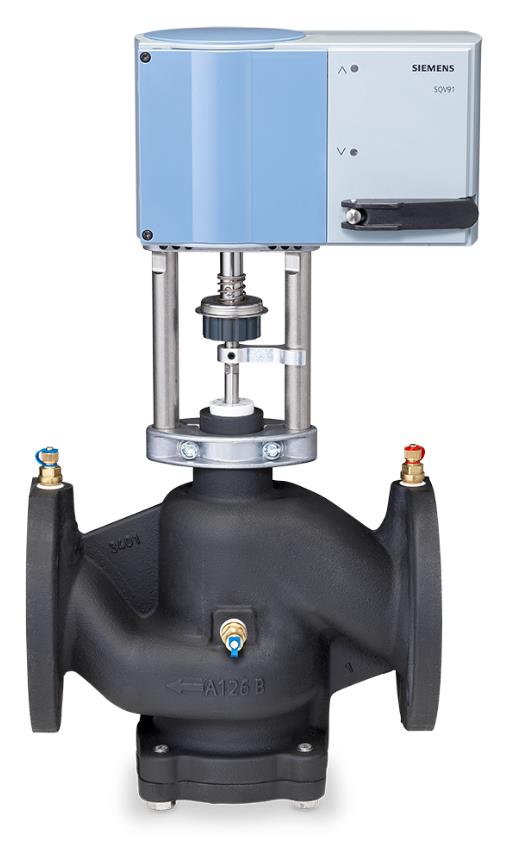

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 238-07322

Jump to: Documents Overview Specifications Alternatives Reviews

Documents and manuals

Siemens 238-07322 Documents

Datasheet Installation Instructions

Overview

Details for 238-07322

DISCONTINUED AND REPLACED WITH 238-07337

PICV, 4 inch, ANSI 250 300 GPM max. flow, with SQV Actuator, Normally Open, SR

Pressure Independent Control Valve, 4 inch, ANSI 250, 300 GPM maximum flow (field adjustable), with 24 Vac Electronic SQV Spring Return Actuator, 3P (floating), 0-10V or 4-20mA, Fail Open

Specifications

Item Number	238-07322
Brand	Siemens
Control Input	Modulating
Control Valves Type	PICV
CV / GPM	300 GPM
Spring Return	Spring Return
Type	Control Valve (PICV)
Valve Size	4" - 2 Way
Voltage	24V
