172P-10330S | 599 Series 2W, 2", 160Cv NC Stainless Steel Ball Valve, 2-pos, SR Actuator | Siemens

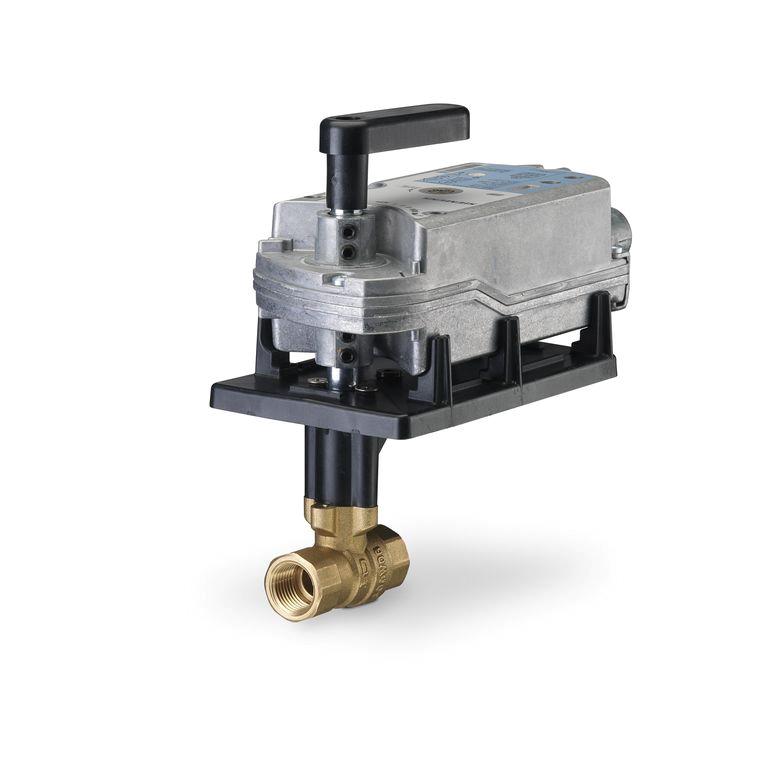

This 599 Series normally closed 2-way ball valve with a spring return two postion (on/off) actuator assembly equipped with dual end switches, providing 200 PSI close-off, is used to control hot or chilled water and up to 50% Glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. This 2 inch valve is 160 Cv, with stainless steel ball and stem and an operating handle that can manually operate valve in the event of power failure.
Typical applications include control of hot or chilled water and up to 50 percent glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. Operating handle can manually operate valve in the event of power failure.
Documents and manuals
Siemens 172P-10330S Documents
Overview
Details for 172P-10330S
599 Series 2W, 2", 160Cv NC Stainless Steel Ball Valve, 2-pos, SR Actuator
Specifications
- Valve Type
- Two-way
- Valve Body Style
- Rotary-Ball
- Port Configuration
- 2-Way Normally closed
- End Connection
- NPT
- Material, valve body
- Brass
- Material, inside set
- Ball: Stainless Steel , Ball Seal: Glass filled PTFE with EPDM O-rings , Stem: Stainless Steel , Stem Seals: EPDM O-rings
- Medium
- Water , Water with anti-freeze
- Leakage rate
- ANSI Class IV
- Medium temperature
- 35…250 ºF
- Valve Actuator Type
- Electronic
- Actuation Style
- Rotary
- Normally Open/Normally Closed
- Normally Closed
- Supply Voltage
- 24 VAC/DC
- Auxiliary switch
- 2
- Auxiliary Switch
- Yes
