172J-10305S | 2W 1/2", 4Cv ball valve assy, stainless steel ball and stem, floating, NC, SR | Siemens
This 599 Series 2-way ball valve with a floating control, normally closed, fail safe actuator assembly, providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1/2-inch valve is 4.0 Cv, equal percentage flow characteristic, with stainless steel ball and stem, and an operating handle that can manually operate the valve in the event of power failure.

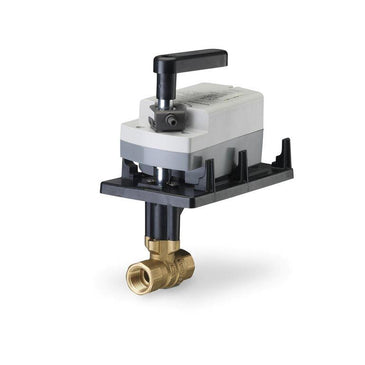

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 172J-10305S
Documents and manuals
Siemens 172J-10305S Documents
Datasheet(599 Series 2-way Ball Valves Submittal Sheet)Datasheet(599 Series 2-Way Ball Valves Technical Instructions)Installation instruction(OpenAir GQD Series SR Rotary Electronic Damper Actuators Installation Instructions)Datasheet for Valve(599 Series 2-way Ball Valves Submittal Sheet)Datasheet for Actuator(OpenAir GQD Series. Spring Return. Rotary. Electronic Damper. 20 lb-in (2 Nm) Submittal Sheet) Installation Instructions More Info
Overview
Details for 172J-10305S
2W 1/2", 4Cv ball valve assy, stainless steel ball and stem, floating, NC, SR
Specifications
- Valve Type
- Two-way
- Valve Body Style
- Rotary-Ball
- Port Configuration
- 2-Way Normally closed
- End Connection
- NPT
- Material, valve body
- Brass
- Material, inside set
- Ball: Stainless Steel , Ball Seals: Glass filled PTFE with EPDM O-rings , Stem: Stainless Steel , Stem Seals: EPDM O-rings
- Medium
- Water , Water with anti-freeze
- Leakage rate
- ANSI Class IV
- Medium temperature
- 35…250 ºF
- Valve Actuator Type
- Electronic
- Actuation Style
- Rotary
- Normally Open/Normally Closed
- Normally Closed
- Supply Voltage
- 24 VAC/DC
- Auxiliary Switch
- No
- Dimensions (W x H x D)
- 6 x 7.63 x 5.38 in
