172G-10327S | 2W 2", 40Cv ball valve assy, stainless steel ball, stem, 0-10V, NC, SR | Siemens

This 599 Series 2-way ball valve with a 0-10 Vdc control, normally closed, fail safe actuator assembly, providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 2-inch valve is 40 Cv, equal percentage flow characteristic, with stainless steel ball and stem, and an operating handle that can manually operate the valve in the event of power failure.

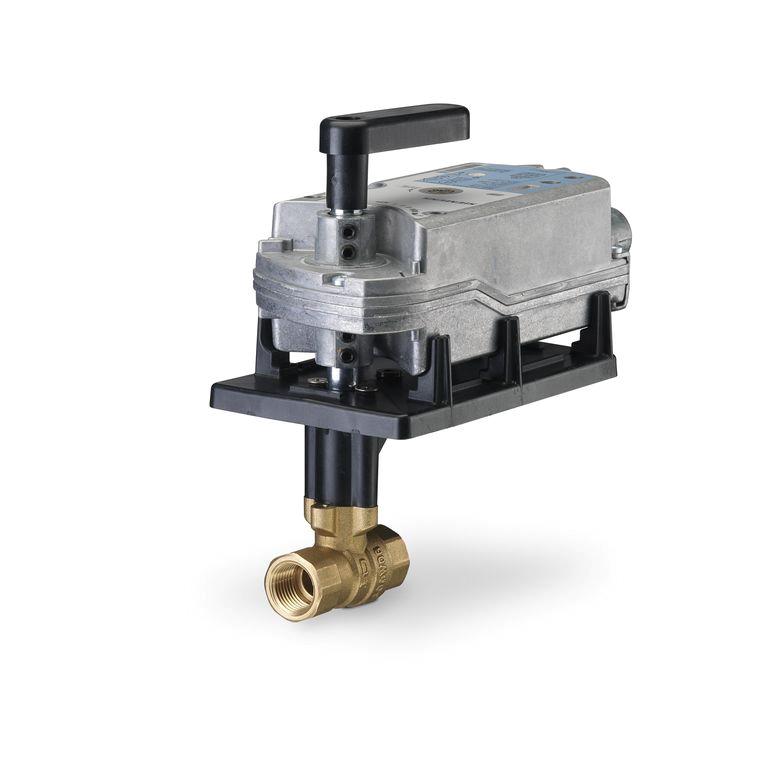

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 172G-10327S

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 172G-10327S Documents

Datasheet(599 Series 2-way Ball Valves Submittal Sheet)Datasheet(599 Series 2-Way Ball Valves Technical Instructions)Installation instruction(OpenAir GMA Series SR Rotary Damper Actuators Installation Instructions)Datasheet for Valve(599 Series 2-way Ball Valves Submittal Sheet)Datasheet for Actuator(OpenAir GMA Series Spring Return. 24 Vac / Vdc and 120 Vac. 62 lb-in Direct-Coupled Submittal Sheet) Installation Instructions More Info

Overview

Details for 172G-10327S

2W 2", 40Cv ball valve assy, stainless steel ball, stem, 0-10V, NC, SR

Specifications

Valve Type: Two-way
Valve Body Style: Rotary-Ball
Port Configuration: 2-Way Normally closed
End Connection: NPT
Material, valve body: Brass
Material, inside set: Ball: Stainless Steel , Ball Seals: Glass filled PTFE with EPDM O-rings , Stem: Stainless Steel , Stem Seals: EPDM O-rings
Medium: Water , Water with anti-freeze
Leakage rate: ANSI Class IV
Medium temperature: 35…250 ºF
Valve Actuator Type: Electronic
Actuation Style: Rotary
Normally Open/Normally Closed: Normally Closed
Supply Voltage: 24 VAC/DC
Auxiliary Switch: No
Dimensions (W x H x D): 8.75 x 9.38 x 5.38 in
