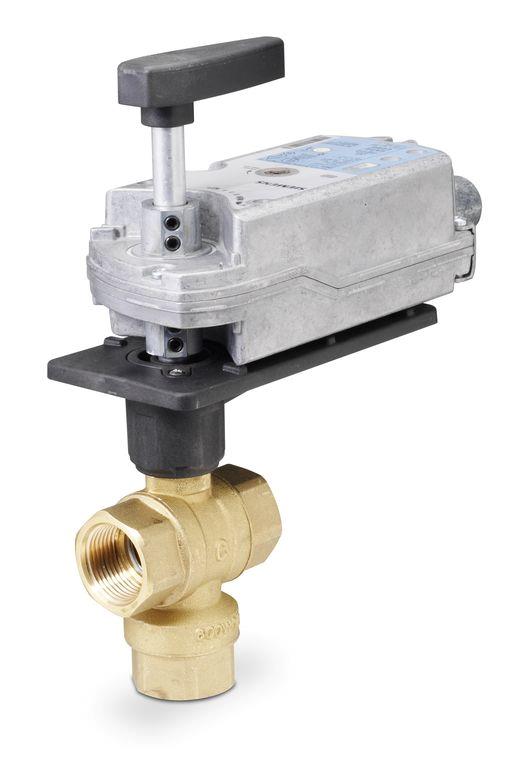

171G-10368 | 599 Series 3W, 1-1/2", 40 Cv Ball Valve, Proportional Spring-Return Actuator | Siemens

This 599 Series 3-way ball valve with a spring return Proportional (0-10V) actuator assembly, providing 200 PSI close-off, is used to control hot or chilled water and up to 50% glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-1/2-inch valve is 40 Cv, with chrome-plated brass ball and brass stem, includes an operating handle that can manually operate valve in the event of power failure.
