171F-10370S | 599 Series 3W, 2", 40Cv Stainless Steel Ball Valve, 3-pos float, SR | Siemens

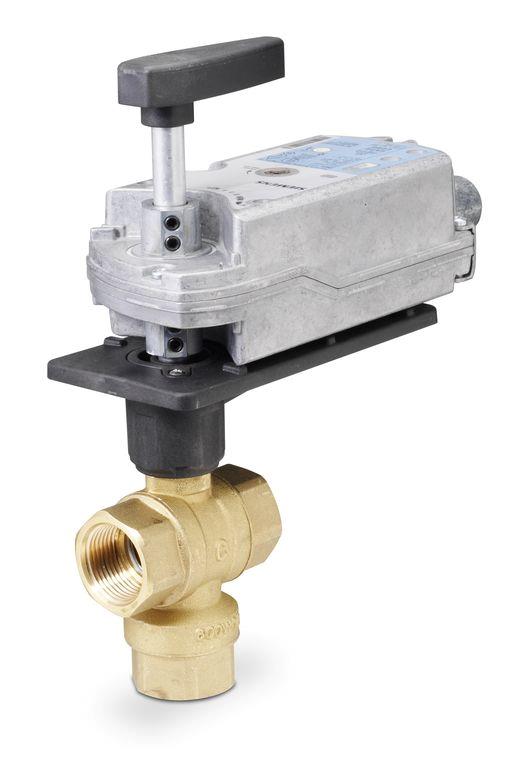

This 599 Series 3-way ball valve with a spring return 3 position (floating) actuator assembly, providing 200 PSI close-off, is used to control hot or chilled water and up to 50% glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. This 2-inch valve is 40 Cv, with stainless steel ball and stem, includes an operating handle that can manually operate valve in the event of power failure.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 171F-10370S
Documents and manuals
Siemens 171F-10370S Documents
Datasheet(599 Series 3-Way Ball Valves Submittal Sheet)Datasheet(599 Series 3-Way Ball Valves Technical Instructions)Datasheet(OpenAir GMA Series. Spring Return. 62 lb-in. Rotary. Electronic Damper Actuators Technical Instructions)Datasheet(599 Series Ball Valve and Actuator Assemblies Selection Technical Bulletin)Datasheet for Actuator(OpenAir GMA Series Spring Return. 24 Vac / Vdc and 120 Vac. 62 lb-in Direct-Coupled Submittal Sheet) More Info
Overview
Details for 171F-10370S
599 Series 3W, 2", 40Cv Stainless Steel Ball Valve, 3-pos float, SR
Specifications
- Valve Type
- Three-way
- Valve Body Style
- Rotary-Ball
- Port Configuration
- 3-Way Mixing/Diverting
- End Connection
- NPT
- Material, valve body
- Brass
- Medium
- Water , Water with anti-freeze
- Leakage rate
- ANSI Class IV
- Medium temperature
- 35…250 ºF
- Valve Actuator Type
- Electronic
- Supply Voltage
- 24 VAC/DC
- Auxiliary Switch
- No
