171C-10311 | 2W 3/4", 25Cv ball valve assy, chrome-plat brass ball, brass stem, 0-10V NSR | Siemens
This 599 Series 2-way ball valve with a 0-10 Vdc control fail-in-place actuator assembly, providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 3/4-inch valve is 25 Cv, full-port valve without flow characterizer insert, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.

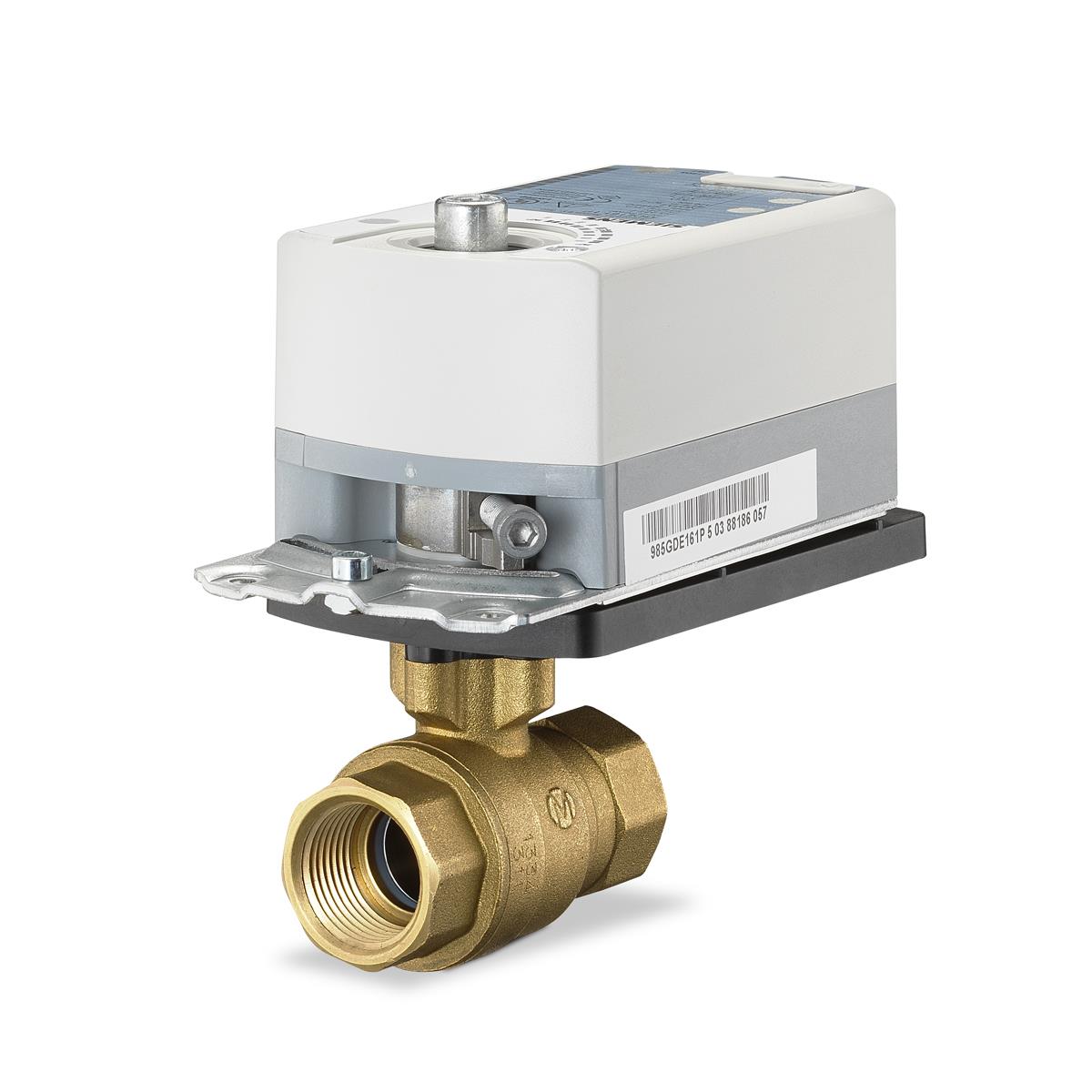

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 171C-10311
Documents and manuals
Siemens 171C-10311 Documents
Datasheet(599 Series 2-way Ball Valves Submittal Sheet)Datasheet(599 Series 2-Way Ball Valves Technical Instructions)Installation instruction(GDEGLB OpenAir Electronic Damper Actuator. GDB / GLB Rotary. Non Spring Return Installation Instructions)Datasheet for Valve(599 Series 2-way Ball Valves Submittal Sheet)Datasheet for Actuator(GDEGLB OpenAir Electronic Damper Actuators GDE Series Enhanced Non-spring Return Rotary Technical Instructions) Installation Instructions More Info
Overview
Details for 171C-10311
2W 3/4", 25Cv ball valve assy, chrome-plat brass ball, brass stem, 0-10V NSR
This 599 Series 2-way ball valve with a 0-10 Vdc control fail-in-place actuator assembly, providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 3/4-inch valve is 25 Cv, full port, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.Specifications
- Valve Type
- Two-way
- Valve Body Style
- Rotary-Ball
- Port Configuration
- 2-Way Normally open
- End Connection
- NPT
- Material, valve body
- Brass
- Material, inside set
- Ball: Chrome-plated brass , Ball Seals: Glass filled PTFE with EPDM O-rings , Stem: Brass , Stem Seals: EPDM O-rings
- Medium
- Water , Water with anti-freeze
- Leakage rate
- ANSI Class IV
- Leakage rate, class
- ANSI Class IV
- Medium temperature
- 35…250 ºF
- Valve Actuator Type
- Electronic
- Actuation Style
- Rotary
- Supply Voltage
- 24 VAC
- Auxiliary Switch
- No
- Dimensions (W x H x D)
- 6.69 x 8 x 5.38 in
