171A-10362 | 599 Series 3W, 1", 16 Cv Ball Valve, 3-Pos Float, Non-Spring Return Actuator | Siemens
This 599 Series 3-way ball valve with a non-spring return 3 position (floating) actuator assembly, providing 200 PSI close-off, is used to control hot or chilled water and up to 50% glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-inch valve is 16 Cv, with chrome-plated brass ball and brass stem, includes an operating handle that can manually operate valve in the event of power failure.

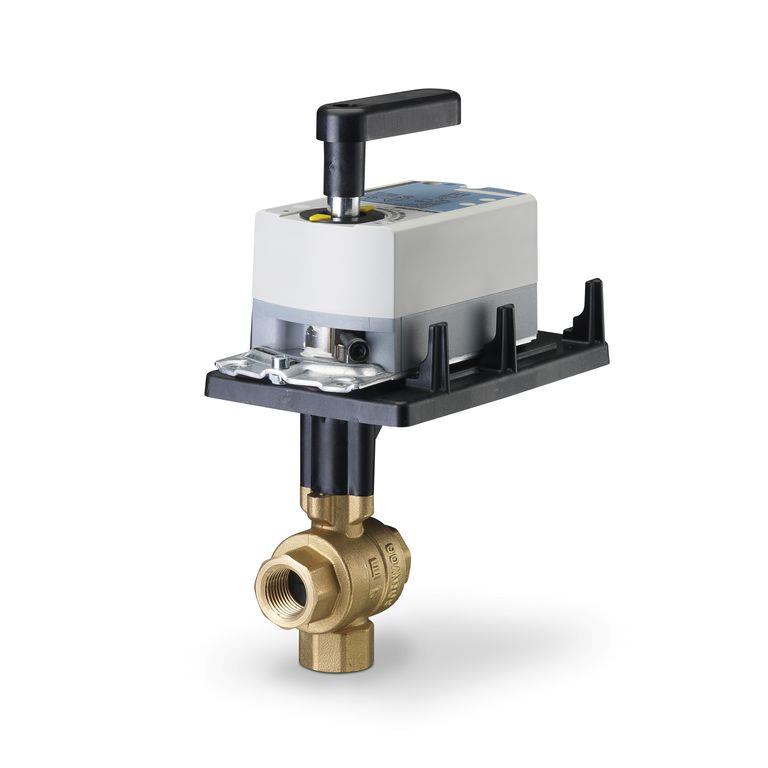

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 171A-10362
Documents and manuals
Siemens 171A-10362 Documents
Datasheet(599 Series 3-Way Ball Valves Submittal Sheet)Datasheet(599 Series 3-Way Ball Valves Technical Instructions)Datasheet(GDEGLB OpenAir GDE/GLB Floating Control Damper Actuators Technical Instructions)Datasheet(599 Series Ball Valve and Actuator Assemblies Selection Technical Bulletin)Datasheet for Actuator(GDEGLB OpenAir™ GDE NSR 24 Vac. 44 lb-in Damper Submittal Sheet) More Info
Overview
Details for 171A-10362
599 Series 3W, 1", 16 Cv Ball Valve, 3-Pos Float, Non-Spring Return Actuator
Specifications
- Valve Type
- Three-way
- Valve Body Style
- Rotary-Ball
- Port Configuration
- 3-Way Mixing/Diverting
- End Connection
- NPT
- Material, valve body
- Brass
- Material, inside set
- Ball: Chrome-plated brass , Ball Seal: Glass filled PTFE with EPDM O-rings , Stem: Brass , Stem Seals: EPDM O-rings
- Medium
- Water with anti-freeze , Water
- Leakage rate
- ANSI Class IV
- Medium temperature
- 35…250 ºF
- Valve Actuator Type
- Electronic
- Actuation Style
- Rotary
- Supply Voltage
- 24 VAC
- Auxiliary Switch
- No
