171A-10359S | 599 Series 3W, 3/4", 10Cv Stainless Steel Ball Valve, 3-Pos float, NSR | Siemens

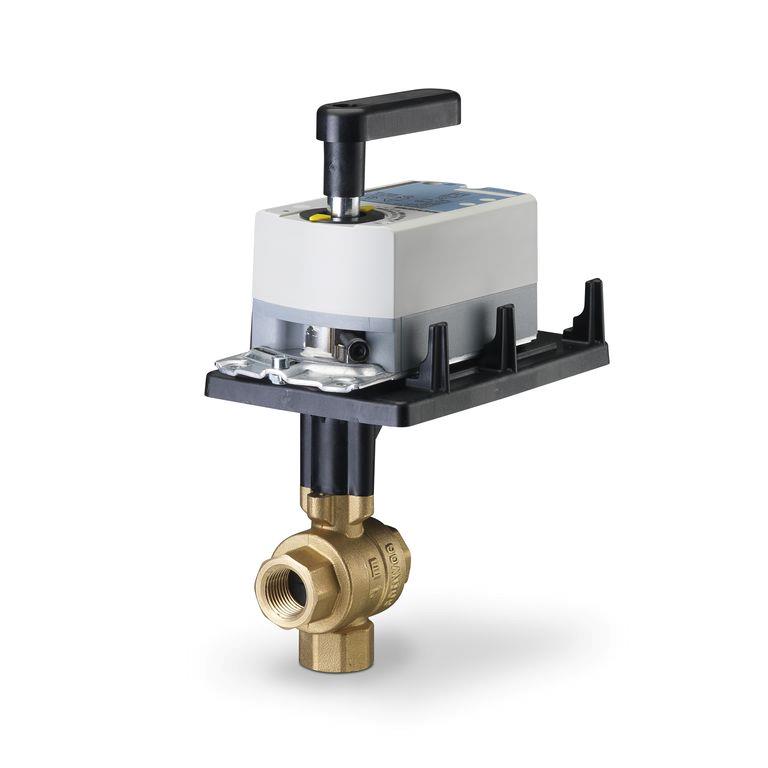

This 599 Series 3-way ball valve with a non-spring return 3 position (floating) actuator assembly, providing 200 PSI close-off, is used to control hot or chilled water and up to 50% Glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. This 3/4-inch valve is 10 Cv, with stainless steel ball and stem and an operating handle that can manually operate valve in the event of power failure.
Typical applications include control of hot or chilled water and up to 50 percent glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. Operating handle can manually operate valve in the event of power failure.
Documents and manuals
Siemens 171A-10359S Documents
Overview
Details for 171A-10359S
599 Series 3W, 3/4", 10Cv Stainless Steel Ball Valve, 3-Pos float, NSR
Specifications
- Valve Type
- Three-way
- Valve Body Style
- Rotary-Ball
- Port Configuration
- 3-Way Mixing/Diverting
- End Connection
- NPT
- Material, valve body
- Brass
- Material, inside set
- Ball: Stainless Steel , Ball Seal: Glass filled PTFE with EPDM O-rings , Stem: Stainless Steel , Stem Seals: EPDM O-rings
- Medium
- Water with anti-freeze , Water
- Leakage rate
- ANSI Class IV
- Medium temperature
- 35…250 ºF
- Valve Actuator Type
- Electronic
- Actuation Style
- Rotary
- Supply Voltage
- 24 VAC
- Auxiliary Switch
- No
