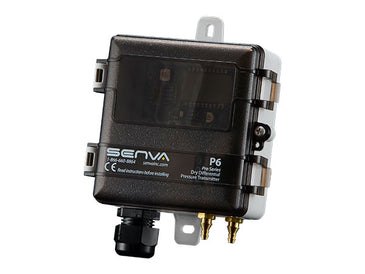

P6-0500-1LX | DRY DIFF. PRESS. 5" ENCLOSED UNIVERSAL W/ LCD, BARBS | Senva Sensors

DRY DIFF. PRESS. 5" ENCLOSED UNIVERSAL W/ LCD, BARBS

Description

The P6 universal dry media pressure transmitter accurately measures multiple ranges optimized for building (zone) pressure, filter measurement, and static duct applications. Selectable outputs and uni/bi directional readings reduce inventory. Conduit ready Nema 4 enclosure for harsh environments.

Applications

• Building (zone) pressure
• Filter condition measurement
• Duct/static
• Wash down environments

Features

Reduce inventory and ordering errors

• Selectable 4-20 mA loop-powered, 4-20 mA 3-wire, 0-5VDC, 0-10VDC for compatibility
• 10 field selectable pressure ranges to address a wide range of applications with high resolution
• Field selectable Pa or WC” display
• Zero calibration push button and remote contact input
• Models for duct or remote probe applications
• Selectable fast/slow response rate (2s fast, 8s slow)

Time & money saving installation

• Non-position sensitive for easy placement
• Conduit ready or use included water tight cable gland

LED visual status indications of operation

• LED: Power heartbeat, ,momentary rapid flash = autozero complete, continual rapid flash = 110% over pressure
