ZENL1111 | Harmony, 22mm Push Button, contact block, panel mount, 1 NO, screw clamp terminal Pack of 5 | Square D by Schneider Electric

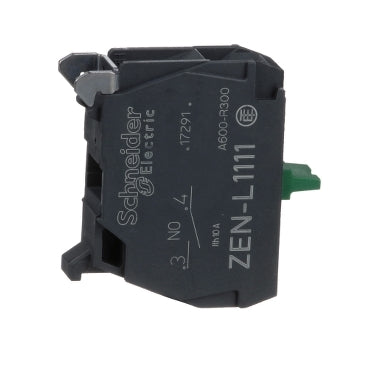

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ZENL1111
Overview
Details for ZENL1111
Harmony, 22mm Push Button, contact block, panel mount, 1 NO, screw clamp terminal
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.Specifications
- Range of Product
- Harmony XAL, Harmony XAPS
- Product or Component Type
- Contact block
- Device short name
- ZENL
- Product destination
- For XB5 Ø 22 mm control and signalling units, For XAPS control station
- Mounting of block
- Rear mounting
- Sale per indivisible quantity
- 5
- Contacts type and composition
- 1 NO
- Assembly style
- For customer assembly
- Net Weight
- 0.03 lb(US) (0.015 kg)
- Contact operation
- Slow-break
- positive opening
- Without
- operating travel
- 0.10 in (2.6 mm) NO changing electrical state), 0.17 in (4.3 mm) total travel)
- operating force
- 2.3 N NO changing electrical state
- operating torque
- 0.44 lbf.in (0.05 N.m) NO changing electrical state
- Mechanical durability
- 10000000 cycles
- connections - terminals
- Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
- tightening torque
- 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
- shape of screw head
- Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
- Contacts material
- Silver alloy (Ag/Ni)
- Maximum resistance across terminals
- 25 MOhm
- short-circuit protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- [Ith] conventional free air thermal current
- 10 A EN/IEC 60947-5-1
- [Ui] rated insulation voltage
- 600 V 3)EN/IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 6 kV EN/IEC 60947-1
- [Ie] rated operational current
- 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1, 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
- electrical durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- electrical reliability
- Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4
- Additional information
- Mounting on integrated plate in the box
- electrical composition code
- SR1 3), SR2 2), MR1 2)
- Protective treatment
- TH
- Ambient Air Temperature for Storage
- -40…158 °F (-40…70 °C)
- Ambient Air Temperature for Operation
- -40…158 °F (-40…70 °C)
- IP degree of protection
- IP20 IEC 60529
- standards
- EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1, UL 508, EN/IEC 60947-5-5, JIS C8201-5-1, EN/IEC 60947-5-4, JIS C8201-1
- vibration resistance
- 5 gn 12…500 Hz)IEC 60068-2-6
- shock resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Category
- 22475-WALL STATIONS
- Discount Schedule
- CS2
- GTIN
- 3389110115079
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.39 in (1 cm)
- Package 1 Width
- 1.18 in (3 cm)
- Package 1 Length
- 1.26 in (3.2 cm)
- Package 1 Weight
- 0.32 oz (9 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 5
- Package 2 Height
- 1.77 in (4.5 cm)
- Package 2 Width
- 2.17 in (5.5 cm)
- Package 2 Length
- 2.36 in (6 cm)
- Package 2 Weight
- 1.85 oz (52.5 g)
- Unit Type of Package 3
- BB2
- Number of Units in Package 3
- 25
- Package 3 Height
- 2.32 in (5.9 cm)
- Package 3 Width
- 1.85 in (4.7 cm)
- Package 3 Length
- 10.43 in (26.5 cm)
- Package 3 Weight
- 9.24 oz (262 g)
- Warranty
- 18 months
