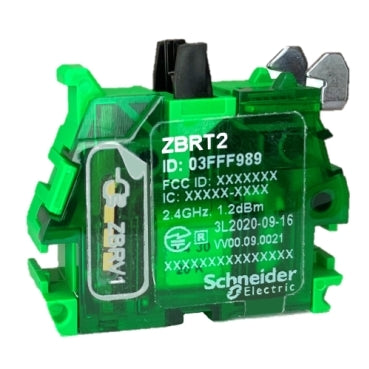

Transmitter for wireless and batteryless push button, Harmony XB5R, plastic, black, double action

This transmitter is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a transmitter for wireless and batteryless pushbutton. It provides 1 radio frame sent at the push of the button and 1 radio frame sent at the release of the button. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 25g. This transmitter is only compatible with receiver ZBRRp version greater than or equal to 2.0, relay antenna ZBRA1 version greater than or equal to 2.0, and access point ZBRNp version greater than 1.2.

Specifications

Range of Product: Harmony XB5
Product or Component Type: Wireless and batteryless transmitter
Device short name: XB5R
Bezel material: Plastic
Mounting diameter: 0.87 in (22 mm)
Transmission frequency: 2405 MHz
emission class: 5M00G7W
Antenna type: Omnidirectional
Max power consumption in W: 1 mW
Number of channels: 16
Modulation technique: O-QPSK
Bandwidth: 5 MHz
Antenna gain: 0 dBi
Embedding Depth: 1.65 in (42 mm)
CAD overall height: 1.63 in (41.5 mm)
CAD overall width: 1.18 in (30 mm)
CAD overall depth: 1.69 in (43 mm)
Net Weight: 0.06 lb(US) (0.025 kg)
operating travel: 0.17 in (4.3 mm) total travel)
operating force: 10 N C/O changing electrical state
mechanical robustness: Free fall resistance 1000 mm EN/IEC 60068-2-32
standards: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508
radio agreement: ANATEL, ARIB T66, FCC, ICASA, RSS
communication port protocol: Zigbee green power 2.4 GHz IEEE 802.15.4
maximum sensing distance: 328.08 ft (100 m) in free field, 82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure, 984.25 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
acquisition time: 2 ms
response time: < 2 ms
fixing mode: Fixing nut beneath head 17.70…21.24 lbf.in (2…2.4 N.m)
electrical composition code: PW1
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
relative humidity: 95 % -40…158 °F (-40…70 °C) without condensation
IP degree of protection: IP30 IEC 60529 back face)
IK degree of protection: IK03 IEC 50102
Mechanical durability: 400000 cycles
shock resistance: 25 gn 6 ms) 6000 shocks IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
vibration resistance: 5 gn 11…500 Hz)IEC 60068-2-6, +/- 10 mm 2…11 Hz)IEC 60068-2-6
electromagnetic compatibility: Electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2, Electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2, Susceptibility to electromagnetic fields 20 V/m 80...3000 MHz) IEC 61000-4-3, Susceptibility to electromagnetic fields 6 V/m 3000...6000 MHz, distance = 20 m) IEC 61000-4-3
Product Certifications: CSA, CCC, UL, GOST, C-tick, BT 2006/95/EC
Directives: 2004/108/EC - electromagnetic compatibility, 1999/5/EC - R&TTE directive
Category: 22470-XB5R WIRELESS PUSH BUTTON
Discount Schedule: I
GTIN: 3606480659928
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.85 in (4.7 cm)
Package 1 Width: 2.13 in (5.4 cm)
Package 1 Length: 2.44 in (6.2 cm)
Package 1 Weight: 1.20 oz (34.0 g)
Unit Type of Package 2: S01
Number of Units in Package 2: 42
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 5.91 in (15.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 3.53 lb(US) (1.601 kg)
