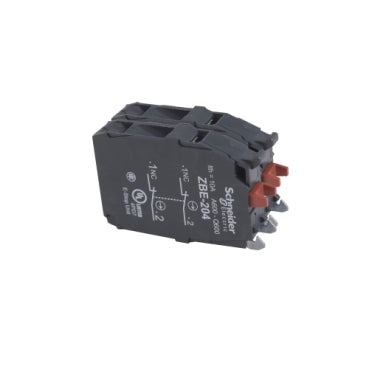

ZBE204 | Double contact block, Harmony XB4, silver alloy, screw clamp terminal, 2NC | Square D by Schneider Electric

Brand: Square DSKU: ZBE204

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ZBE204

Jump to: Overview & Specifications Reviews

Overview Details for ZBE204

Double contact block, Harmony XB4, silver alloy, screw clamp terminal, 2NC

This Harmony ZB, double contact block uses screw-clamp terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. This double contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 and XB5 complete push-button units and selector switches and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Specifications

Range of Product: Harmony XB4, Harmony XB5
Product or Component Type: Contact block
Device short name: ZBE
Sale per indivisible quantity: 5
IP degree of protection: IP20 IEC 60529
Contact operation: Slow-break
Contact block type: Double
Contacts usage: Standard contacts
connections - terminals: Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Net Weight: 0.04 lb(US) (0.02 kg)
contacts type and composition: 2 NC
positive opening: With EN/IEC 60947-5-1 appendix K
operating travel: 0.06 in (1.5 mm) NC changing electrical state), 0.17 in (4.3 mm) total travel)
operating force: 3.4 N NC changing electrical state
Mechanical durability: 10000000 cycles
tightening torque: 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
shape of screw head: Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material: Silver alloy (Ag/Ni)
short-circuit protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3)EN 60947-1
[Uimp] rated impulse withstand voltage: 6 kV EN 60947-1
[Ie] rated operational current: 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1, 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
electrical durability: 1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Mounting of block: Front mounting
electrical composition code: C2 3), C4 2), C6 2), C8 1), C10 2), C13 3), M2 2), M4 2), M8 2)
Device presentation: Basic element
Protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
standards: EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, UL 508, JIS C8201-1
Product Certifications: CCC, CSA, GL, BV, DNV, LROS (Lloyds register of shipping), UL, GOST
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22469-PUSHBUTTON,22MM ACCESSORIES-NEW
Discount Schedule: CS2
GTIN: 3389110119206
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.39 in (1 cm)
Package 1 Width: 1.34 in (3.4 cm)
Package 1 Length: 2.05 in (5.2 cm)
Package 1 Weight: 0.60 oz (17 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 5
Package 2 Height: 2.17 in (5.5 cm)
Package 2 Width: 2.09 in (5.3 cm)
Package 2 Length: 2.24 in (5.7 cm)
Package 2 Weight: 3.28 oz (93 g)
Unit Type of Package 3: S02
Number of Units in Package 3: 400
Package 3 Height: 5.91 in (15 cm)
Package 3 Width: 11.81 in (30 cm)
Package 3 Length: 15.75 in (40 cm)
Package 3 Weight: 17.03 lb(US) (7.725 kg)
Warranty: 18 months
