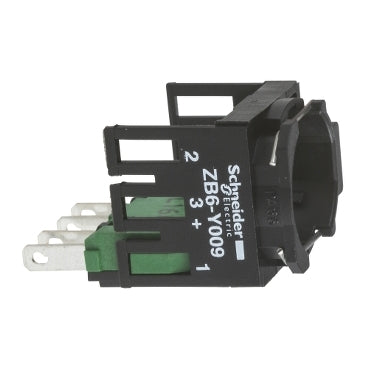

ZB6Z1B | Complete body for push buttons or selector switches, Harmony XB6, single contact, with body/fixing collar, faston connector, 1NO | Square D by Schneider Electric

Brand: Square DSKU: ZB6Z1B

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ZB6Z1B

Jump to: Overview & Specifications Reviews

Overview Details for ZB6Z1B

Complete body for push buttons or selector switches, Harmony XB6, single contact, with body/fixing collar, faston connector, 1NO

This Harmony ZB6Z1B is a single contact block with body/fixing collar 1 NO faston connector. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Specifications

Range of Product: Harmony XB6
Product or Component Type: Complete body for push-buttons or selector switches
Device short name: ZB6
Fixing collar material: Plastic
Sale per indivisible quantity: 1
Contacts type and composition: 1 NO
Contact operation: Slow-break
connections - terminals: Faston connector, Faston connector 2.8 x 0.5 mm
[Us] rated supply voltage: <= 250 V
CAD overall width: 0.71 in (18 mm)
CAD overall height: 0.71 in (18 mm)
CAD overall depth: 1.57 in (40 mm)
Terminals description ISO n°1: (13-14)NO
Net Weight: 0.01 lb(US) (0.004 kg)
Contacts usage: Standard
positive opening: With EN/IEC 60947-5-1 appendix K
operating travel: 0.08 in (2 mm) NO changing electrical state), 0.17 in (4.3 mm) total travel)
operating force: 1.6 N NO changing electrical state
Contacts material: Silver alloy (Ag/Ni)
short-circuit protection: 6 A cartridge fuse gG EN/IEC 60947-5-1
[Ie] rated operational current: 3 A 120 V, AC-15, B300, 1.5 A 240 V, AC-15, B300, 0.1 A 250 V, DC-13, R300, 0.22 A 125 V, DC-13, R300
electrical durability: 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability: Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Protective treatment: TC
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
electrical shock protection class: Class II IEC 61140
IP degree of protection: IP65 IEC 60529
standards: JIS C 852, EN/IEC 60947-5-5, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508, JIS C 4520
Product Certifications: GOST, UL, CCC, CSA
vibration resistance: +/- 3 mm 2…500 Hz)IEC 60068-2-6, 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22459-PUSHBUTTONS, 16MM
Discount Schedule: CS2
GTIN: 3389110775334
Returnability: Yes
Country of origin: ES
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.08 in (0.2 cm)
Package 1 Width: 4.33 in (11.0 cm)
Package 1 Length: 6.30 in (16.0 cm)
Package 1 Weight: 0.21 oz (6.0 g)
Unit Type of Package 2: S01
Number of Units in Package 2: 100
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 5.91 in (15.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 28.22 oz (800.0 g)
Warranty: 18 months
