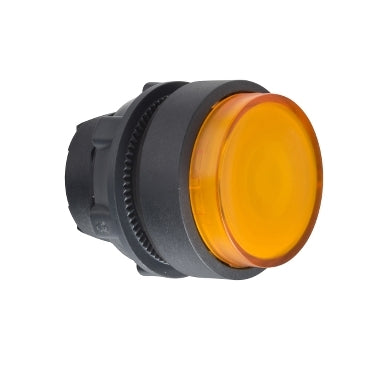

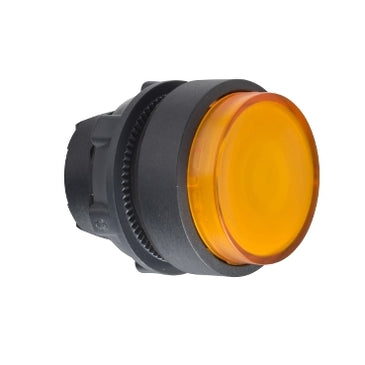

ZB5AW153 | Head for illuminated push button, Harmony XB5, orange projecting, 22mm, universal LED, spring return, unmarked | Square D by Schneider Electric

Brand: Square DSKU: ZB5AW153

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ZB5AW153

Jump to: Overview & Specifications Reviews

Overview Details for ZB5AW153

Head for illuminated push button, Harmony XB5, orange projecting, 22mm, universal LED, spring return, unmarked

This orange projecting illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Specifications

Range of Product: Harmony XB5
Product or Component Type: Head for illuminated push-button
Device short name: ZB5
Product Compatibility: Universal LED
Bezel material: Dark grey plastic
Mounting diameter: 0.87 in (22 mm)
Sale per indivisible quantity: 1
Head type: Standard
Shape of signaling unit head: Round
type of operator: spring return
operator profile: Orange projecting, unmarked
Operator additional information: With plain lens
CAD overall width: 1.14 in (29 mm)
CAD overall height: 1.14 in (29 mm)
CAD overall depth: 1.30 in (33 mm)
Net Weight: 0.04 lb(US) (0.018 kg)
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability: 10000000 cycles
Main group: Illum push-button
Group of product: Proj push integral LED
station name: XALD 1...5 cut-outs, XALK 2...5 cut-outs
Cap/operator or lens colour: Orange
Marking: Unmarked
electrical composition code: M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MR1 2 single rear mounting integral LED
Device presentation: Basic sub-assemblies
Protective treatment: TC
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
overvoltage category: Class II IEC 60536
IP degree of protection: IP66 IEC 60529, IP69, IP69K
NEMA degree of protection: NEMA 13, NEMA 4X
IK degree of protection: IK05 EN 50102
Standards: UL 508, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-5-1, EN/IEC 60947-1, GB 14048.5, JIS C8201-1
Product Certifications: UL Listed, BV, GL, LROS (Lloyds register of shipping), CSA, DNV
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22467-PUSHBUTTONS,22MM(PLASTIC) NEW
Discount Schedule: CS2
GTIN: 3389110909883
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.26 in (3.2 cm)
Package 1 Width: 1.42 in (3.6 cm)
Package 1 Length: 1.73 in (4.4 cm)
Package 1 Weight: 0.60 oz (17.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 100
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 4.64 lb(US) (2.103 kg)
Package 3 Height: 5.91 in (15 cm)
Warranty: 18 months
