Details for ZB5AJ2

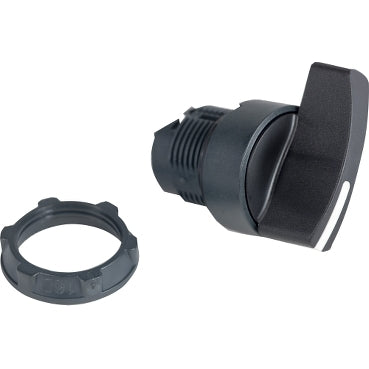

Selector switch head, Harmony XB5, plastic, black, 22mm, long handle, 2 positions, stay put

This Harmony XB5, black head with long handle for selector switch has 2 positions, operates with stay-put mechanism. This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Specifications

Range of Product: Harmony XB5
Product or Component Type: Head for selector switch
Device short name: ZB5
Bezel material: Dark grey plastic
Mounting diameter: 0.87 in (22 mm)
Head type: Standard
Sale per indivisible quantity: 1
Shape of signaling unit head: Round
type of operator: stay put
operator profile: Black long handle
Operator additional information: Non padlockable
Operator position information: 2 positions 90°
CAD overall width: 1.14 in (29 mm)
CAD overall height: 1.50 in (38 mm)
CAD overall depth: 1.81 in (46 mm)
Net Weight: 0.04 lb(US) (0.017 kg)
Mechanical durability: 1000000 cycles
station name: XALD 1...5 cut-outs, XALK 2...5 cut-outs
electrical composition code: C3 6 single front mounting, C4 6 single and double front mounting, C5 5 single front mounting, C6 5 single and double front mounting, C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting
Device presentation: Basic element
Protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
overvoltage category: Class II IEC 60536
IP degree of protection: IP67 IEC 60529, IP69 IEC 60529, IP69K
NEMA degree of protection: NEMA 13, NEMA 4X
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection: IK06 IEC 50102
Standards: EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, CSA C22.2 No 14, JIS C8201-5-1, UL 508, JIS C8201-1
Product Certifications: LROS (Lloyds register of shipping), GL, CSA, BV, DNV, UL Listed
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22467-PUSHBUTTONS,22MM(PLASTIC) NEW
Discount Schedule: CS2
GTIN: 3389110906004
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.97 in (5 cm)
Package 1 Width: 1.38 in (3.5 cm)
Package 1 Length: 2.13 in (5.4 cm)
Package 1 Weight: 0.85 oz (24 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 5
Package 2 Height: 1.77 in (4.5 cm)
Package 2 Width: 1.34 in (3.4 cm)
Package 2 Length: 10.43 in (26.5 cm)
Package 2 Weight: 4.27 oz (121 g)
Unit Type of Package 3: S02
Number of Units in Package 3: 100
Package 3 Height: 5.91 in (15 cm)
Package 3 Width: 11.81 in (30 cm)
Package 3 Length: 15.75 in (40 cm)
Package 3 Weight: 6.21 lb(US) (2.818 kg)
Warranty: 18 months
