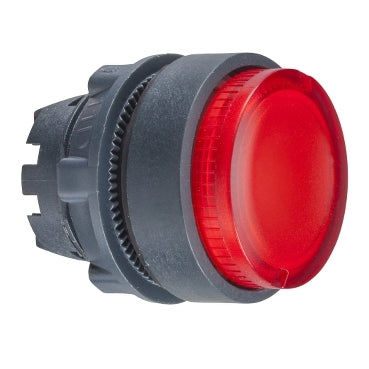

ZB5AH43 | Head for illuminated push button, Harmony XB5, red projecting, 22mm, universal LED, push to release, unmarked | Square D by Schneider Electric

Brand: Square DSKU: ZB5AH43

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ZB5AH43

Jump to: Overview & Specifications Reviews

Overview Details for ZB5AH43

Head for illuminated push button, Harmony XB5, red projecting, 22mm, universal LED, push to release, unmarked

This red projecting illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Specifications

Range of Product: Harmony XB5
Product or Component Type: Head for illuminated push-button
Product Compatibility: Universal LED
Device short name: ZB5
Bezel material: Dark grey plastic
Mounting diameter: 0.87 in (22 mm)
Head type: Standard
Sale per indivisible quantity: 1
Shape of signaling unit head: Round
type of operator: push-push
operator profile: Red projecting, unmarked
CAD overall width: 1.14 in (29 mm)
CAD overall height: 1.14 in (29 mm)
CAD overall depth: 1.30 in (33 mm)
Net Weight: 0.04 lb(US) (0.017 kg)
Mechanical durability: 5000000 cycles
station name: XALD 1...5 cut-outs, XALK 2...5 cut-outs
electrical composition code: M5 2 single front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MR1 2 single rear mounting integral LED
Device presentation: Basic element
Protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
electrical shock protection class: Class II IEC 60536
IP degree of protection: IP66 IEC 60529
NEMA degree of protection: NEMA 13, NEMA 4X
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection: IK05 IEC 50102
standards: EN/IEC 60947-5-1, EN/IEC 60947-1, UL 508, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-5, EN/IEC 60947-5-4, JIS C8201-1
Product Certifications: GL, DNV, CSA, UL Listed, LROS (Lloyds register of shipping), BV
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22467-PUSHBUTTONS,22MM(PLASTIC) NEW
Discount Schedule: CS2
GTIN: 00785901386537
Returnability: No
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.13 in (5.4 cm)
Package 1 Width: 1.34 in (3.4 cm)
Package 1 Length: 1.73 in (4.4 cm)
Package 1 Weight: 0.63 oz (18.0 g)
Unit Type of Package 2: S01
Number of Units in Package 2: 50
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 5.91 in (15 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 2.48 lb(US) (1.125 kg)
Warranty: 18 months
