Details for ZB5AA333

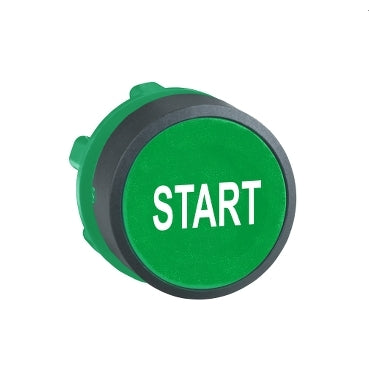

Push button head, Harmony XB5, plastic, flush, green, 22mm, spring return, marked START

This Harmony XB5, flush green button head operates with a spring return / impulse mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Specifications

Range of Product: Harmony XB5
Product or Component Type: Head for non-illuminated push-button
Device short name: ZB5
Bezel material: Dark grey plastic
Mounting diameter: 0.87 in (22 mm)
Head type: Standard
Sale per indivisible quantity: 1
Shape of signaling unit head: Round
type of operator: spring return
operator profile: Green flush, START white)
CAD overall width: 1.14 in (29 mm)
CAD overall height: 1.14 in (29 mm)
CAD overall depth: 1.10 in (28 mm)
Net Weight: 0.04 lb(US) (0.018 kg)
Mechanical durability: 10000000 cycles
station name: XALD 1...5 cut-outs, XALK 2...5 cut-outs
electrical composition code: C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting
Device presentation: Basic element
Protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
overvoltage category: Class II IEC 60536
IP degree of protection: IP66 IEC 60529, IP67, IP69, IP69K
NEMA degree of protection: NEMA 13, NEMA 4X
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection: IK03 IEC 50102
Standards: EN/IEC 60947-1, EN/IEC 60947-5-4, UL 508, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-1
Product Certifications: BV, CSA, DNV, UL Listed, LROS (Lloyds register of shipping), GL
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
Category: 22467-PUSHBUTTONS,22MM(PLASTIC) NEW
Discount Schedule: CS2
GTIN: 3389110904543
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.42 in (3.600 cm)
Package 1 Width: 1.85 in (4.700 cm)
Package 1 Length: 2.17 in (5.500 cm)
Package 1 Weight: 0.60 oz (17.000 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 5
Package 2 Height: 1.77 in (4.500 cm)
Package 2 Width: 1.34 in (3.400 cm)
Package 2 Length: 10.43 in (26.500 cm)
Package 2 Weight: 3.00 oz (85.000 g)
Unit Type of Package 3: S03
Number of Units in Package 3: 150
Package 3 Height: 11.81 in (30.000 cm)
Package 3 Width: 11.81 in (30.000 cm)
Package 3 Length: 15.75 in (40.000 cm)
Package 3 Weight: 6.61 lb(US) (3.000 kg)
Warranty: 18 months
