ZB4BZ105 | Harmony, 22mm Push Button, XB4B operators, contact block, with mounting collar, 1 NO and 1 NC, screw clamp terminal | Square D by Schneider Electric

Brand: Square DSKU: ZB4BZ105

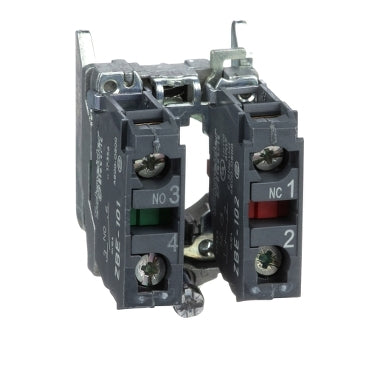

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ZB4BZ105

Jump to: Overview & Specifications Reviews

Overview Details for ZB4BZ105

Harmony, 22mm Push Button, XB4B operators, contact block, with mounting collar, 1 NO and 1 NC, screw clamp terminal

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Range of Product: Harmony XB4
Product or Component Type: Complete body/contact assembly
Device short name: ZB4
Fixing collar material: Zamak
Sale per indivisible quantity: 1
Head type: Standard
Contacts type and composition: 1 NO + 1 NC
Contact operation: Slow-break
Contact block type: Single
Device Composition: Fixing collar, Body
connections - terminals: Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
CAD overall width: 1.18 in (30 mm)
CAD overall height: 1.85 in (47 mm)
CAD overall depth: 1.46 in (37 mm)
Terminals description ISO n°1: (11-12)NC
Net Weight: 0.14 lb(US) (0.062 kg)
Contacts usage: Standard contacts
positive opening: With EN/IEC 60947-5-1 appendix K
operating travel: 0.06 in (1.5 mm) NC changing electrical state), 0.10 in (2.6 mm) NO changing electrical state), 0.17 in (4.3 mm) total travel)
operating torque: 0.44 lbf.in (0.05 N.m) NO changing electrical state
Mechanical durability: 5000000 cycles
tightening torque: 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
shape of screw head: Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material: Silver alloy (Ag/Ni)
short-circuit protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3)EN 60947-1
[Uimp] rated impulse withstand voltage: 6 kV EN 60947-1
[Ie] rated operational current: 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1, 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
electrical durability: 10000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 10000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 10000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 10000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 10000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability: Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4, Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Device presentation: Basic sub-assemblies
Protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
IP degree of protection: IP20 IEC 60529
standards: EN/IEC 60947-1, JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-5, UL 508, EN/IEC 60947-5-4, JIS C8201-1
Product Certifications: GL, DNV, LROS (Lloyds register of shipping), CSA, BV, UL
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22469-PUSHBUTTON,22MM ACCESSORIES-NEW
Discount Schedule: CS2
GTIN: 3389110889413
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.34 in (3.4 cm)
Package 1 Width: 1.73 in (4.4 cm)
Package 1 Length: 2.13 in (5.4 cm)
Package 1 Weight: 2.15 oz (61 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 5
Package 2 Height: 1.34 in (3.4 cm)
Package 2 Width: 1.73 in (4.4 cm)
Package 2 Length: 10.43 in (26.5 cm)
Package 2 Weight: 10.76 oz (305 g)
Unit Type of Package 3: S03
Number of Units in Package 3: 200
Package 3 Height: 11.81 in (30 cm)
Package 3 Width: 11.81 in (30 cm)
Package 3 Length: 15.75 in (40 cm)
Package 3 Weight: 28.11 lb(US) (12.752 kg)
Warranty: 18 months
