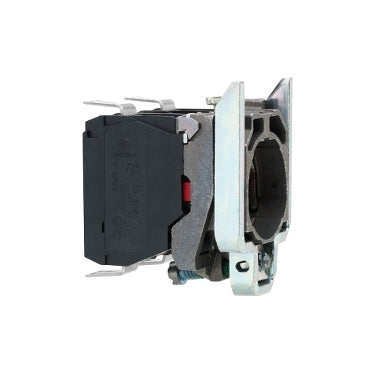

ZB4BZ1013 | Harmony complete body/contact, body for push buttons or selector switches, XB6, single contact block with body/fixing collar 1 NO faston connector | Square D by Schneider Electric

Brand: Square DSKU: ZB4BZ1013

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ZB4BZ1013

Jump to: Overview & Specifications Reviews

Overview Details for ZB4BZ1013

Harmony complete body/contact, body for push buttons or selector switches, XB6, single contact block with body/fixing collar 1 NO faston connector

Specifications

Range of Product: Harmony XB4
Product or Component Type: Complete body/contact assembly
Device short name: ZB4
Fixing collar material: Zamak
Sale per indivisible quantity: 1
Head type: Standard
Contacts type and composition: 1 NO
Contact operation: Slow-break
Contact block type: Single
Device Composition: Body, Fixing collar
connections - terminals: Faston connector 1 x 6.35 mm, Faston connector 2 x 2.8 mm
CAD overall width: 1.18 in (30 mm)
CAD overall height: 1.85 in (47 mm)
CAD overall depth: 1.46 in (37 mm)
Terminals description ISO n°1: (13-14)NO
Net Weight: 0.12 lb(US) (0.053 kg)
Contacts usage: Standard contacts
positive opening: Without
operating travel: 0.10 in (2.6 mm) NO changing electrical state), 0.17 in (4.3 mm) total travel)
operating force: 2.3 N NO changing electrical state
operating torque: 0.44 lbf.in (0.05 N.m) NO changing electrical state
Mechanical durability: 5000000 cycles
Contacts material: Silver alloy (Ag/Ni)
[Ui] rated insulation voltage: 250 V 3)EN 60947-1
electrical durability: 10000000 cycles
electrical reliability: Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4, Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
IP degree of protection: IP20 IEC 60529
standards: EN/IEC 60947-5-1, UL 508, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-4, JIS C8201-5-1, EN/IEC 60947-5-5, JIS C8201-1
Product Certifications: DNV, LROS (Lloyds register of shipping), BV, CSA, UL, GL
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22469-PUSHBUTTON,22MM ACCESSORIES-NEW
Discount Schedule: CS2
GTIN: 3389110801835
