ZB4BV01 | Pilot light head, Harmony XB4, metal, white, 22mm, plain lens for BA9s bulb | ~ Square D (OBSOLETE)

Brand: Square DSKU: ZB4BV01

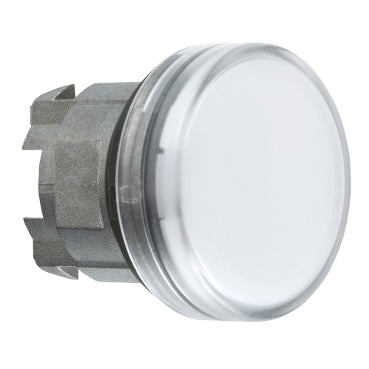

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ZB4BV01

Jump to: Overview & Specifications Reviews

Overview Details for ZB4BV01

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

Pilot light head, Harmony XB4, metal, white, 22mm, plain lens for BA9s bulb

This Harmony XB4, plain lens white head for pilot light is supplied with BA9s base. This head with BA9s base pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Specifications

Range of Product: Harmony XB4
Product or Component Type: Head for pilot light
Product Compatibility: BA 9s
Device short name: ZB4
Bezel material: Chromium plated metal
Mounting diameter: 0.87 in (22 mm)
Sale per indivisible quantity: 1
Head type: Standard
Shape of signaling unit head: Round
Cap/operator or lens colour: White
Operator additional information: With plain lens
CAD overall width: 1.14 in (29 mm)
CAD overall height: 1.14 in (29 mm)
CAD overall depth: 1.22 in (31 mm)
Net Weight: 0.06 lb(US) (0.027 kg)
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
electrical composition code: P3 front mounting BA 9s, P4 front mounting BA 9s and transformer
Device presentation: Basic element
Protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…131 °F (-40…55 °C)
overvoltage category: Class I IEC 60536
IP degree of protection: IP66 IEC 60529, IP67, IP69, IP69K
NEMA degree of protection: NEMA 13, NEMA 4X
IK degree of protection: IK06 IEC 50102
standards: EN/IEC 60947-5-1, EN/IEC 60947-1, JIS C8201-5-1, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-5-5, CSA C22.2 No 14, JIS C8201-1
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22468-PUSHBUTTONS,22MM(METAL) NEW
Discount Schedule: CS2
GTIN: 3389110889499
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.73 in (4.400 cm)
Package 1 Width: 1.34 in (3.400 cm)
Package 1 Length: 2.13 in (5.400 cm)
Package 1 Weight: 0.81 oz (23.000 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 5
Package 2 Height: 1.73 in (4.400 cm)
Package 2 Width: 1.34 in (3.400 cm)
Package 2 Length: 10.43 in (26.500 cm)
Package 2 Weight: 4.13 oz (117.000 g)
Unit Type of Package 3: S03
Number of Units in Package 3: 300
Package 3 Height: 11.81 in (30.000 cm)
Package 3 Width: 11.81 in (30.000 cm)
Package 3 Length: 15.75 in (40.000 cm)
Package 3 Weight: 16.67 lb(US) (7.562 kg)
Warranty: 18 months

Documents: ZB4BV01
