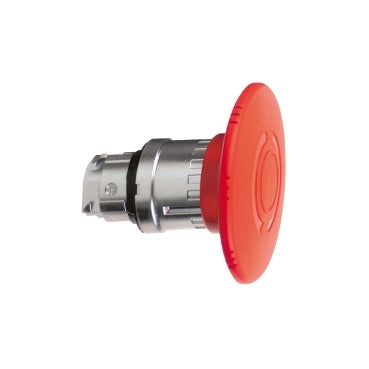

Emergency stop head, Harmony XB4, switching off, metal, red mushroom 60mm, 22mm, trigger latching turn to release

This Harmony XB4, emergency stop / shutdown 60mm mushroom red button head operates with a latched turn to release mechanism. This emergency stop / shutdown button head also called EMS (Emergency Machine Stop) and EMO (Emergency Off) provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off pushbuttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Specifications

Range of Product: Harmony XB4
Product or Component Type: Head for emergency switching off push-button
Device short name: ZB4
Bezel material: Chromium plated metal
Mounting diameter: 0.87 in (22 mm)
Sale per indivisible quantity: 1
Shape of signaling unit head: Round
type of operator: trigger action and mechanical latching
Reset: Turn to release
operator profile: Red mushroom Ø 60 mm, unmarked
Head type: Standard
CAD overall width: 2.36 in (60 mm)
CAD overall height: 2.36 in (60 mm)
CAD overall depth: 2.24 in (57 mm)
Net Weight: 0.21 lb(US) (0.093 kg)
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability: 300000 cycles
electrical composition code: C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, C10 4 single and double front mounting
Device presentation: Basic element
Protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
electrical shock protection class: Class I IEC 61140
IP degree of protection: IP66 IEC 60529, IP69, IP69K
NEMA degree of protection: NEMA 13, NEMA 4X, NEMA 4, NEMA 12
IK degree of protection: IK03 IEC 50102
standards: UL 508, EN/IEC 60947-5-5, EN/IEC 60204-1, IEC 60364-5-53, EN/ISO 13850, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14, GB 14048.5, JIS C8201-5-1, EN/IEC 60947-1, JIS C8201-1
Product Certifications: LROS (Lloyds register of shipping), BV, UL Listed, DNV, GL, CSA
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22468-PUSHBUTTONS,22MM(METAL) NEW
Discount Schedule: CS2
GTIN: 3389110801828
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.76 in (7 cm)
Package 1 Width: 2.91 in (7.4 cm)
Package 1 Length: 3.62 in (9.2 cm)
Package 1 Weight: 3.10 oz (88 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 40
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 8.99 lb(US) (4.078 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 320
Package 3 Height: 30.31 in (77 cm)
Package 3 Width: 23.62 in (60 cm)
Package 3 Length: 31.50 in (80 cm)
Package 3 Weight: 94.10 lb(US) (42.684 kg)
Warranty: 18 months
