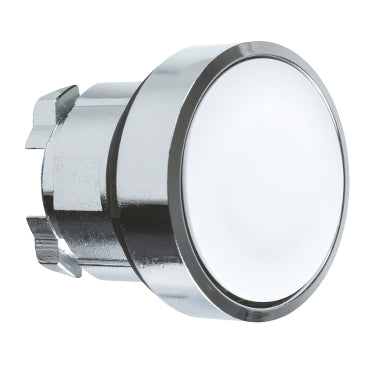

ZB4BA1 | Push button head, Harmony XB4, metal, flush, white, 22mm, spring return, unmarked | Square D by Schneider Electric

Brand: Square DSKU: ZB4BA1

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ZB4BA1

Jump to: Overview & Specifications Reviews

Overview Details for ZB4BA1

Push button head, Harmony XB4, metal, flush, white, 22mm, spring return, unmarked

This Harmony XB4, white button head operates with a spring return mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Specifications

Range of Product: Harmony XB4
Product or Component Type: Head for non-illuminated push-button
Device short name: ZB4
Bezel material: Chromium plated metal
Mounting diameter: 0.87 in (22 mm)
Sale per indivisible quantity: 1
Head type: Standard
Shape of signaling unit head: Round
type of operator: spring return
operator profile: White flush, unmarked
CAD overall width: 1.14 in (29 mm)
CAD overall height: 1.14 in (29 mm)
CAD overall depth: 1.10 in (28 mm)
Mechanical durability: 10000000 cycles
electrical composition code: C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting
Device presentation: Basic element
Protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
overvoltage category: Class I IEC 60536
IP degree of protection: IP66 IEC 60529, IP67, IP69, IP69K
NEMA degree of protection: NEMA 13, NEMA 4X
IK degree of protection: IK06 IEC 50102
standards: EN/IEC 60947-1, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-5-5, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-1
Product Certifications: LROS (Lloyds register of shipping), DNV, BV, CSA, UL Listed, GL
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22468-PUSHBUTTONS,22MM(METAL) NEW
Discount Schedule: CS2
GTIN: 3389110887457
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.77 in (4.500 cm)
Package 1 Width: 1.34 in (3.400 cm)
Package 1 Length: 2.13 in (5.400 cm)
Package 1 Weight: 0.99 oz (28.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 300
Package 2 Height: 11.81 in (30.000 cm)
Package 2 Width: 11.81 in (30.000 cm)
Package 2 Length: 15.75 in (40.000 cm)
Package 2 Weight: 19.85 lb(US) (9.004 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 2400
Package 3 Height: 30.31 in (77.000 cm)
Package 3 Width: 31.50 in (80.000 cm)
Package 3 Length: 23.62 in (60.000 cm)
Package 3 Weight: 184.76 lb(US) (83.804 kg)
Warranty: 18 months
