XVLA334 | Pilot light, Harmony XVL, plastic, red, 12mm, covered LED, 24V DC | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XVLA334

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D XVLA334 Documents

Datasheet More Info

Overview

Details for XVLA334

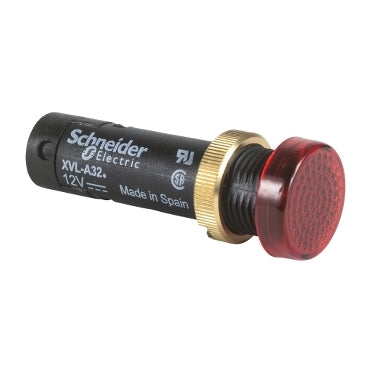

Pilot light, Harmony XVL, plastic, red, 12mm, covered LED, 24V DC

This Harmony XVLA334 is a red pilot light diameter 12mm. Its degree of protection is IP40/IP65 (with seal). It has covered LED included, 24V, lugs connection. It is part of the range Harmony XVL diameter 8-12 mm plastic pilot lights.

Specifications

Range of Product: Harmony XVL
Product or Component Type: LED pilot light with integral lens cap
component name: XVL
mounting diameter: 0.47 in (12 mm)
light source: Covered LED
light block colour: Red
Protection Type: Built-in by diode;Integral ballast resistor
[Us] rated supply voltage: 24 V
IP degree of protection: IP65 IEC 60529 with seal XVLZ912);IP65 NF C 20-010 with seal XVLZ912);IP40 IEC 60529;IP40 NF C 20-010
supply circuit type: DC
connections - terminals: Threaded connector 1 x 0.2...1 x 1.5 mm²
Current Consumption: 18 mA
[Ui] rated insulation voltage: 50 V IEC 60947-1
bulb lifespan: 100000 h
nominal voltage limit: 0.8...1.1 Un
terminals description ISO n°1: (X1-X2)PL
Height: 0.63 in (16 mm)
Width: 0.63 in (16 mm)
Depth: 2.01 in (51 mm)
Net Weight: 0.02 lb(US) (0.007 kg)
Product Certifications: UL;CSA
protective treatment: TC
Ambient air temperature for operation: -13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
overvoltage category: Class 3 IEC 60536;Class 3 NF C 20-030
Category: 22460-PUSHBUTTONS 22MM (PLASTIC)
Discount Schedule: CS2
GTIN: 3389110651683
Returnability: Yes
Country of origin: ES
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.98 in (2.5 cm)
Package 1 Width: 0.98 in (2.5 cm)
Package 1 Length: 1.77 in (4.5 cm)
Package 1 Weight: 0.27 oz (7.6 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 1.18 in (3.0 cm)
Package 2 Width: 3.94 in (10.0 cm)
Package 2 Length: 5.51 in (14.0 cm)
Package 2 Weight: 2.68 oz (76.0 g)
Unit Type of Package 3: S01
Number of Units in Package 3: 100
Package 3 Height: 5.91 in (15.0 cm)
Package 3 Width: 5.91 in (15.0 cm)
Package 3 Length: 15.75 in (40.0 cm)
Package 3 Weight: 34.22 oz (970.0 g)
Warranty: 18 months
