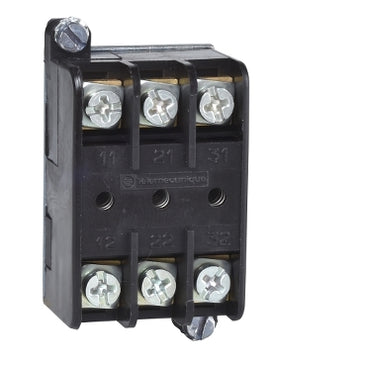

Isolating switch, Harmony XAC, single block XEN T, for control circuit

This product is part of the Harmony XAC range, an offer of pendant control stations for Ø22mm plastic signalling units. This single isolating block for control circuit. It has 3 normally closed contacts. It is an isolating block with a rated insulation voltage of 400V and a conventional enclosed thermal current of 10A. It is designed for front mounting with slow-break contact operation. It is furnished with screw clamp terminals for electrical connection. It offers mechanical durability of 1 million operating cycles. It weighs 0.05kg. It is suitable for industry and service sector, hoist and travelling cranes. It meets CSA C22.2 No 14, UL 508, EN/IEC 60947-5-1 and EN/IEC 60204-32 standards. It is compatible with the pendant control stations XACA. It is designed for mechanical handling, these highly robust pendant control stations comply with the safety requirements of IEC standards. They are not only simples and intuitive, but also very comfortable for the operator to use.

Specifications

Range of Product: Harmony XAC
Product or Component Type: Isolating switch
Component name: XENT
Electrical circuit type: Control circuit
Contact block application: Emergency stop push-button
Contact block type: Single
Product Compatibility: XACA
Contacts type and composition: 3 NC
Mounting of block: Front mounting
Contact operation: Slow-break
connections - terminals: Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end, Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Mechanical durability: 1000000 cycles
contact code designation: A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current: 10 A
[Ui] rated insulation voltage: 400 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-1
Maximum resistance across terminals: 25 MOhm
Operating force: 14 N
short-circuit protection: 10 A fuse protection cartridge gG
rated operational power in W: 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C, 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C, 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Net Weight: 0.11 lb(US) (0.05 kg)
standards: CSA C22.2 No 14, UL 508, EN/IEC 60947-5-1, EN/IEC 60204-32
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
vibration resistance: 15 gn 10…500 Hz)IEC 60068-2-6
shock resistance: 100 gn IEC 60068-2-27
electrical shock protection class: Class II IEC 61140
Category: 22466-PUSHBUTTON, ACCESSORIES
Discount Schedule: CS2
GTIN: 3389110426915
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.42 in (3.6 cm)
Package 1 Width: 1.85 in (4.7 cm)
Package 1 Length: 3.98 in (10.1 cm)
Package 1 Weight: 2.36 oz (67.0 g)
Unit Type of Package 2: S01
Number of Units in Package 2: 45
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 5.91 in (15.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 7.03 lb(US) (3.189 kg)
Warranty: 18 months
