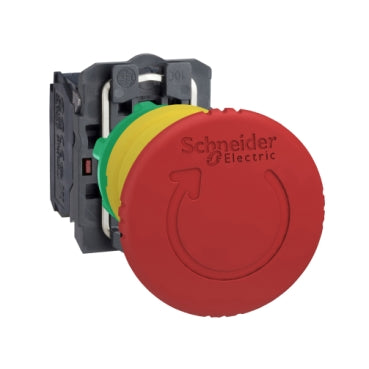

XB5AS8444 | Emergency stop switching off, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger latching turn to release, 2NC | Square D by Schneider Electric

Brand: Square DSKU: XB5AS8444

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XB5AS8444

Jump to: Overview & Specifications Reviews

Overview Details for XB5AS8444

Emergency stop switching off, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger latching turn to release, 2NC

This Harmony XB5, emergency stop 40mm mushroom head modular red push button operates with a latched-turn-to-release mechanism and uses screw clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Specifications

Range of Product: Harmony XB5
Product or Component Type: Emergency switching off push-button
Device short name: XB5
Bezel material: Dark grey plastic
Fixing collar material: Plastic
Head type: Standard
Mounting diameter: 0.87 in (22 mm)
Sale per indivisible quantity: 1
Shape of signaling unit head: Round
type of operator: trigger action and mechanical latching
Reset: Turn to release
operator profile: Red mushroom Ø 40 mm, unmarked
Contact operation: Slow-break
connections - terminals: Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Device presentation: Complete product
Height: 1.69 in (43 mm)
Width: 1.57 in (40 mm)
Depth: 3.23 in (82 mm)
Terminals description ISO n°1: (11-12)NC
Net Weight: 0.16 lb(US) (0.072 kg)
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Contacts usage: Standard contacts
positive opening: With EN/IEC 60947-5-1 appendix K
operating travel: 0.06 in (1.5 mm) NC changing electrical state), 0.17 in (4.3 mm) total travel)
Mechanical durability: 300000 cycles
tightening torque: 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
shape of screw head: Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material: Silver alloy (Ag/Ni)
short-circuit protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3)EN 60947-1
[Uimp] rated impulse withstand voltage: 6 kV EN 60947-1
[Ie] rated operational current: 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1, 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
electrical durability: 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability: Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4, Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
overvoltage category: Class II IEC 60536
IP degree of protection: IP66 IEC 60529, IP67, IP69, IP69K
NEMA degree of protection: NEMA 13, NEMA 4X
IK degree of protection: IK03 IEC 50102
Standards: EN/IEC 60204-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/ISO 13850, EN/IEC 60947-5-5, IEC 60364-5-53, EN/IEC 60947-5-4, JIS C8201-5-1, UL 508, EN/IEC 60947-1, JIS C8201-1
Product Certifications: GL, CSA, DNV, UL Listed, BV, LROS (Lloyds register of shipping)
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22467-PUSHBUTTONS,22MM(PLASTIC) NEW
Discount Schedule: CS2
GTIN: 3389110368666
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.93 in (4.9 cm)
Package 1 Width: 2.09 in (5.3 cm)
Package 1 Length: 3.74 in (9.5 cm)
Package 1 Weight: 2.40 oz (68 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 80
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 13.08 lb(US) (5.932 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 640
Package 3 Height: 30.31 in (77 cm)
Package 3 Width: 23.62 in (60 cm)
Package 3 Length: 31.50 in (80 cm)
Package 3 Weight: 127.26 lb(US) (57.724 kg)
Warranty: 18 months
