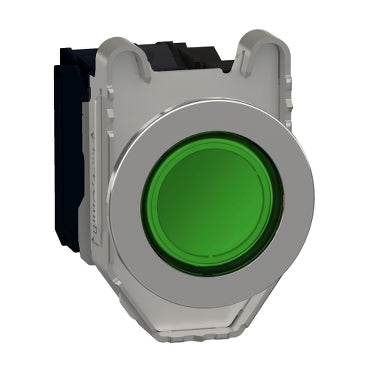

Illuminated push button, Harmony XB4, metal, green flush mounted, 30mm, universal LED, plain lens, 1NO + 1NC, 24V AC/DC
This flush mounted illuminated pushbutton is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 24 V AC/DC. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. It has a plain lens and the source of light is an integral LED. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return. The shape of the head is round and green. The bezel is chromium plated and the fixing collar is zamak. The weight of this pushbutton is 132 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.Specifications
- Range of Product
- Harmony XB4
- Product or Component Type
- Illuminated push-button
- device short name
- XB4F
- bezel material
- Chromium plated metal
- fixing collar material
- Zamak
- mounting diameter
- 1.20 in (30.5 mm)
- sale per indivisible quantity
- 1
- head type
- Built-in-flush
- shape of signaling unit head
- Round
- type of operator
- spring return
- operator profile
- Green flush
- operator additional information
- With plain lens
- contacts type and composition
- 1 NO + 1 NC
- contact operation
- Slow-break
- connections - terminals
- Screw clamp terminals;<= 2 x 1.5 mm² with cable end EN/IEC 60947-1;Screw clamp terminals;1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
- light source
- Universal LED
- bulb base
- Integral LED
- [Us] rated supply voltage
- 24 V AC/DC 50/60 Hz
- Height
- 1.85 in (47 mm)
- Width
- 1.44 in (36.6 mm)
- Depth
- 2.17 in (55 mm)
- terminals description ISO n°1
- (21-22)NC;(13-14)NO
- Net Weight
- 0.29 lb(US) (0.132 kg)
- resistance to high pressure washer
- 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
- device mounting
- Built-in
- fixing mode
- By screws 7.08 lbf.in (0.8 N.m)
- contacts usage
- Standard contacts
- positive opening
- With EN/IEC 60947-5-1 appendix K
- operating travel
- 0.06 in (1.5 mm) NC changing electrical state);0.10 in (2.6 mm) NO changing electrical state);0.17 in (4.3 mm) total travel)
- operating force
- 3.5 N NC changing electrical state;3.8 N
- mechanical durability
- 10000000 cycles
- tightening torque
- 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
- shape of screw head
- Cross Philips no 1;Cross pozidriv No 1;Slotted flat Ø 4 mm;Slotted flat Ø 5.5 mm
- contacts material
- Silver alloy (Ag/Ni)
- short-circuit protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- [Ith] conventional free air thermal current
- 10 A EN/IEC 60947-5-1
- [Ui] rated insulation voltage
- 600 V 3)EN/IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 6 kV EN/IEC 60947-1
- [Ie] rated operational current
- 3 A 240 V;AC-15;A600 EN/IEC 60947-5-1;6 A 120 V;AC-15;A600 EN/IEC 60947-5-1;0.1 A 600 V;DC-13;Q600 EN/IEC 60947-5-1;0.27 A 250 V;DC-13;Q600 EN/IEC 60947-5-1;0.55 A 125 V;DC-13;Q600 EN/IEC 60947-5-1;1.2 A 600 V;AC-15;A600 EN/IEC 60947-5-1
- electrical durability
- 1000000 cycles;AC-15;2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- electrical reliability
- Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4;Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
- signalling type
- Steady
- Current Consumption
- 18 mA
- service life
- 100000 h at rated voltage and 25 °C
- surge withstand
- 1 kV IEC 61000-4-5
- supply voltage limits
- 19.2…30 V DC;21.6…26.4 V AC
- device presentation
- Complete product
- protective treatment
- TH
- Ambient Air Temperature for Storage
- -40…158 °F (-40…70 °C)
- Ambient air temperature for operation
- -40…158 °F (-40…70 °C)
- electrical shock protection class
- Class I IEC 60536
- IP degree of protection
- IP66 IEC 60529;IP67 IEC 60529;IP69 IEC 60529;IP69K ISO 20653;Type 13 UL 50 E;Type 12 UL 50 E;Type 4 UL 50 E;Type 4X UL 50 E
- IK degree of protection
- IK06 IEC 50102
- Standards
- CSA C22.2 No 14;EN/IEC 60947-5-1;EN/IEC 60947-5-4;UL 508;EN/IEC 60947-1;JIS C8201-5-1;CE;JIS C8201-1
- Product Certifications
- UL Listed;CSA;CCC;EAC
- vibration resistance
- 5 gn 10…500 Hz)IEC 60068-2-6;2 mm peak to peak 2…10 Hz)IEC 60068-2-6
- shock resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27;25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- resistance to fast transients
- 2 kV IEC 61000-4-4
- resistance to electromagnetic fields
- 9.14 V/m (10 V/m) IEC 61000-4-3
- resistance to electrostatic discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2;8 kV in free air (in insulating parts) IEC 61000-4-2
- electromagnetic emission
- Class B IEC 55011
- Category
- 22468-PUSHBUTTONS;22MM(METAL) NEW
- Discount Schedule
- CS2
- GTIN
- 3606489580667
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.39 in (8.6 cm)
- Package 1 Width
- 1.69 in (4.3 cm)
- Package 1 Length
- 2.05 in (5.2 cm)
- Package 1 Weight
- 4.44 oz (126 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 80
- Package 2 Height
- 11.81 in (30 cm)
- Package 2 Width
- 11.81 in (30 cm)
- Package 2 Length
- 15.75 in (40 cm)
- Package 2 Weight
- 23.29 lb(US) (10.563 kg)
- Warranty
- 18 months
