XB4BS9445 | Emergency stop switching off, Harmony XB4, metal, red mushroom, 40mm, 22mm, trigger latching key release, 1NO+1NC | Square D by Schneider Electric

Brand: Square DSKU: XB4BS9445

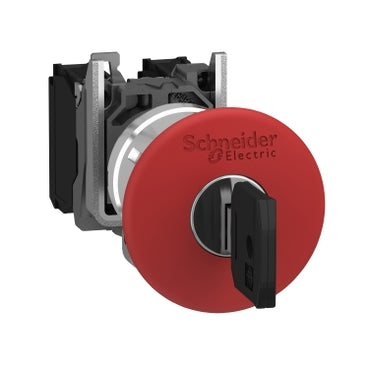

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XB4BS9445

Jump to: Overview & Specifications Reviews

Overview Details for XB4BS9445

Emergency stop switching off, Harmony XB4, metal, red mushroom, 40mm, 22mm, trigger latching key release, 1NO+1NC

This Harmony XB4 emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched key release (key no.455) mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Specifications

Range of Product: Harmony XB4
Product or Component Type: Emergency stop push-button, Emergency switching off push-button
Device short name: XB4
Bezel material: Chromium plated metal
Fixing collar material: Zamak
Mounting diameter: 0.87 in (22 mm)
Sale per indivisible quantity: 1
Shape of signaling unit head: Round
type of operator: trigger action and mechanical latching
Head type: Standard
Reset: Key release
operator profile: Red mushroom Ø 40 mm, unmarked
Type of Keylock: Key 455
Key withdrawal position: Center
Contact operation: Slow-break
connections - terminals: Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1, Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Height: 1.85 in (47 mm)
Width: 1.57 in (40 mm)
Depth: 4.09 in (104 mm)
Terminals description ISO n°1: (13-14)NO
Net Weight: 0.37 lb(US) (0.17 kg)
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Contacts usage: Standard contacts
positive opening: With EN/IEC 60947-5-1 appendix K
operating travel: 0.06 in (1.5 mm) NC changing electrical state), 0.10 in (2.6 mm) NO changing electrical state), 0.17 in (4.3 mm) total travel)
operating force: 44 N
Mechanical durability: 300000 cycles
tightening torque: 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
shape of screw head: Cross Philips no 1, Cross pozidriv No 1, Slotted flat Ø 4 mm, Slotted flat Ø 5.5 mm
Contacts material: Silver alloy (Ag/Ni)
short-circuit protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3)EN 60947-1
[Uimp] rated impulse withstand voltage: 6 kV EN 60947-1
[Ie] rated operational current: 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1, 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
electrical durability: 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability: Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4, Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Device presentation: Complete product
Protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
electrical shock protection class: Class I IEC 60536
IP degree of protection: IP66 IEC 60529, IP67, IP69, IP69K
NEMA degree of protection: NEMA 13, NEMA 4X
IK degree of protection: IK03 IEC 50102
standards: EN/IEC 60947-5-4, JIS C8201-5-1, IEC 60364-5-53, EN/IEC 60204-1, UL 508, EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/ISO 13850, CSA C22.2 No 14, JIS C8201-1
Product Certifications: DNV, CSA, LROS (Lloyds register of shipping), UL Listed, GL, BV
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22468-PUSHBUTTONS,22MM(METAL) NEW
Discount Schedule: CS2
GTIN: 3389110887068
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.57 in (4.0 cm)
Package 1 Width: 2.13 in (5.4 cm)
Package 1 Length: 3.39 in (8.6 cm)
Package 1 Weight: 5.64 oz (160.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 80
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 29.12 lb(US) (13.21 kg)
Warranty: 18 months
