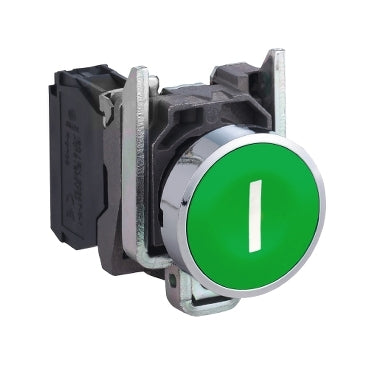

Push button, metal, Harmony XB4, flush, green, 22mm, spring return, marked I, 1NO
This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. It is marked with a "I" symbol. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.Specifications
- Range of Product
- Harmony XB4
- Product or Component Type
- Push-button
- device short name
- XB4
- bezel material
- Chromium plated metal
- fixing collar material
- Zamak
- mounting diameter
- 0.87 in (22 mm)
- sale per indivisible quantity
- 1
- shape of signaling unit head
- Round
- type of operator
- spring return
- operator profile
- Green flush;I white)
- head type
- Standard
- contacts type and composition
- 1 NO
- contact operation
- Slow-break
- connections - terminals
- Screw clamp terminals;<= 2 x 1.5 mm² with cable end EN/IEC 60947-1;Screw clamp terminals;1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
- Height
- 1.85 in (47 mm)
- Width
- 1.18 in (30 mm)
- Depth
- 2.05 in (52 mm)
- terminals description ISO n°1
- (13-14)NO
- Net Weight
- 0.18 lb(US) (0.08 kg)
- resistance to high pressure washer
- 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
- contacts usage
- Standard contacts
- positive opening
- Without
- operating travel
- 0.10 in (2.6 mm) NO changing electrical state);0.17 in (4.3 mm) total travel)
- operating force
- 3.8 N NO changing electrical state
- mechanical durability
- 10000000 cycles
- tightening torque
- 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
- shape of screw head
- Cross Philips no 1;Cross pozidriv No 1;Slotted flat Ø 4 mm;Slotted flat Ø 5.5 mm
- contacts material
- Silver alloy (Ag/Ni)
- short-circuit protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- [Ith] conventional free air thermal current
- 10 A EN/IEC 60947-5-1
- [Ui] rated insulation voltage
- 600 V 3)EN/IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 6 kV EN/IEC 60947-1
- [Ie] rated operational current
- 3 A 240 V;AC-15;A600 EN/IEC 60947-5-1;6 A 120 V;AC-15;A600 EN/IEC 60947-5-1;0.1 A 600 V;DC-13;Q600 EN/IEC 60947-5-1;0.27 A 250 V;DC-13;Q600 EN/IEC 60947-5-1;0.55 A 125 V;DC-13;Q600 EN/IEC 60947-5-1;1.2 A 600 V;AC-15;A600 EN/IEC 60947-5-1
- electrical durability
- 1000000 cycles;AC-15;2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- electrical reliability
- Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4;Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
- device presentation
- Complete product
- protective treatment
- TH
- Ambient Air Temperature for Storage
- -40…158 °F (-40…70 °C)
- Ambient air temperature for operation
- -40…158 °F (-40…70 °C)
- overvoltage category
- Class I IEC 60536
- IP degree of protection
- IP66 IEC 60529;IP67;IP69;IP69K
- NEMA degree of protection
- NEMA 13;NEMA 4X
- IK degree of protection
- IK06 IEC 50102
- Standards
- JIS C8201-5-1;CSA C22.2 No 14;EN/IEC 60947-5-1;EN/IEC 60947-5-4;EN/IEC 60947-1;UL 508;EN/IEC 60947-5-5;JIS C8201-1
- Product Certifications
- DNV;CSA;BV;LROS (Lloyds register of shipping);UL Listed;GL
- vibration resistance
- 5 gn 2…500 Hz)IEC 60068-2-6
- shock resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Category
- 22468-PUSHBUTTONS;22MM(METAL) NEW
- Discount Schedule
- CS2
- GTIN
- 3389110895773
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.46 in (8.800 cm)
- Package 1 Width
- 1.34 in (3.400 cm)
- Package 1 Length
- 2.13 in (5.400 cm)
- Package 1 Weight
- 2.80 oz (79.4 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 150
- Package 2 Height
- 11.81 in (30.000 cm)
- Package 2 Width
- 11.81 in (30.000 cm)
- Package 2 Length
- 15.75 in (40.000 cm)
- Package 2 Weight
- 27.32 lb(US) (12.393 kg)
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 1200
- Package 3 Height
- 30.31 in (77.000 cm)
- Package 3 Width
- 31.50 in (80.000 cm)
- Package 3 Length
- 23.62 in (60.000 cm)
- Package 3 Weight
- 236.21 lb(US) (107.144 kg)
- Warranty
- 18 months
