Documents: XACB9112

Datasheet More Info

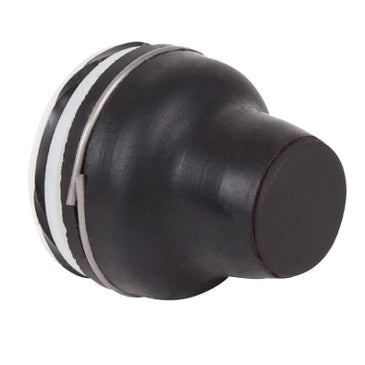

XACB9112 | Push button head, Harmony XAC, plastic, black, booted, operating travel 4mm, 25…+ 70 degree C | Square D

Brand: Square DSKU: XACB9112

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XACB9112

Jump to: Overview & Specifications Reviews

Overview Details for XACB9112

Push button head, Harmony XAC, plastic, black, booted, operating travel 4mm, 25…+ 70 degree C

This black booted operator is a separate component for double insulated, XACB pendant control station. Its maximum operating travel is equal to 4mm. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.

Specifications

Range of Product: Harmony XAC
Product or Component Type: Head for push-button
Component name: XACB
Marking: Unmarked
Operator additional information: Booted
Operating travel: 0.16 in (4 mm)
Cap/operator or lens colour: Black
Product Compatibility: XESD2251, XESB2011, XENB...., XENC...., XESD2241, XESD2201, XEND....
Sale per indivisible quantity: 10
Net Weight: 0.01 lb(US) (0.005 kg)
standards: EN 60947-5-1, CSA C22.2 No 14, IEC 60947-5-1
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
vibration resistance: 15 gn 10…500 Hz)IEC 60068-2-6
shock resistance: 100 gn IEC 60068-2-27
electrical shock protection class: Class II IEC 61140
IP degree of protection: IP65 conforming to IEC 60529
IK degree of protection: IK08 EN 50102
Category: 22473-PUSHBUTTON, PENDANTS
Discount Schedule: CS2
GTIN: 3389110640823
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.18 in (3.0 cm)
Package 1 Width: 5.12 in (13.0 cm)
Package 1 Length: 7.09 in (18.0 cm)
Package 1 Weight: 0.21 oz (6.0 g)
Unit Type of Package 2: BAG
Number of Units in Package 2: 10
Package 2 Height: 7.09 in (18.0 cm)
Package 2 Width: 1.18 in (3.0 cm)
Package 2 Length: 5.12 in (13.0 cm)
Package 2 Weight: 2.29 oz (65.0 g)
Unit Type of Package 3: S02
Number of Units in Package 3: 200
Package 3 Height: 5.91 in (15.0 cm)
Package 3 Width: 11.81 in (30.0 cm)
Package 3 Length: 15.75 in (40.0 cm)
Package 3 Weight: 3.55 lb(US) (1.612 kg)
Warranty: 18 months
