VW3M5101R30 | power cable - between servomotor BDH, BSH and servodrive - 4x1.5mm²+2x1mm² - 3 m | Square D by Schneider Electric

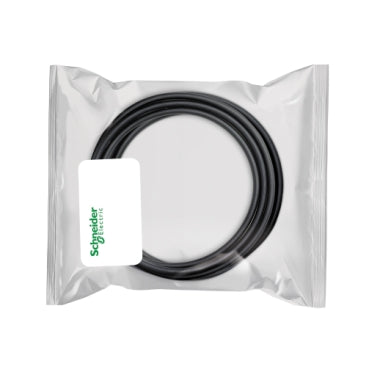

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VW3M5101R30

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D VW3M5101R30 Documents

Datasheet More Info

Overview

Details for VW3M5101R30

power cable - between servomotor BDH, BSH and servodrive - 4x1.5mm²+2x1mm² - 3 m

This product is part of the Lexium range, an offer of motion servo drives and servo motors. This power cable is an accessory of servo drives and motors. The length of this cable is 3m. It is furnished with M23 industrial connector for servo motor side and free end for servo drive side for electrical connection. The cable composition is 4 x 1.5mm² + 2 x 1mm². It is used between servo motor BDH, BSH and servo drive. It weighs 0.81kg. This product is compatible with Lexium 32, Lexium 05 and Lexium 15 servo drives and with servo motors BMH and BSH. With this new generation of motors and drives, you have the benefit of powerful solutions to design and optimize machines, the perfect answer to your technical and economic challenges. The high concentrate solutions for your machines.

Specifications

Product or Component Type: Power cable
Accessory / Separate Part Type: Preassembled power cordset
Accessory / separate part category: Connection accessory
product compatibility: Servo motor BMH, 1 2.76 in (70 mm)), Servo motor BMH, 2 2.76 in (70 mm)), Servo motor BMH, 3 2.76 in (70 mm)), Servo motor BMH, 1 3.94 in (100 mm)), Servo motor BMH, 2 3.94 in (100 mm)), Servo motor BMH, 3 3.94 in (100 mm)), Servo motor BMH, 1 5.51 in (140 mm)), Servo motor BSH, 1 2.17 in (55 mm)), Servo motor BSH, 2 2.17 in (55 mm)), Servo motor BSH, 3 2.17 in (55 mm)), Servo motor BSH, 1 2.76 in (70 mm)), Servo motor BSH, 2 2.76 in (70 mm)), Servo motor BSH, 3 2.76 in (70 mm)), Servo motor BSH, 1 3.94 in (100 mm)), Servo motor BSH, 2 3.94 in (100 mm)), Servo motor BSH, 3 3.94 in (100 mm)), Servo motor BSH, 1 5.51 in (140 mm))
Accessory / separate part destination: Between servo motor and servo drive
Range Compatibility: Lexium 05, Lexium 32, Lexium 15
Cable length: 9.84 ft (3 m)
Cable composition: 4 x 1.5 mm² + 2 x 1 mm²
electrical connection: Connector - industrial M23 servo motor side, Free end servo drive side
Net Weight: 1.79 lb(US) (0.81 kg)
Category: 18263-LEXIUM 32 ACCESSORIES
Discount Schedule: PC51
GTIN: 3389119207294
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.38 in (3.5 cm)
Package 1 Width: 9.45 in (24.0 cm)
Package 1 Length: 10.24 in (26.0 cm)
Package 1 Weight: 27.34 oz (775.0 g)
Unit Type of Package 2: S06
Number of Units in Package 2: 75
Package 2 Height: 28.94 in (73.5 cm)
Package 2 Width: 23.62 in (60.0 cm)
Package 2 Length: 31.50 in (80.0 cm)
Package 2 Weight: 160.94 lb(US) (73.0 kg)
Warranty: 18 months
