Details for VW3A3607

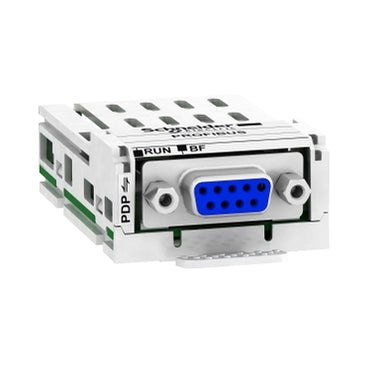

PROFIBUS DP communication module

This Schneider Electric Altivar Profibus DP communication module has 1 x 9-way female SUB-D connector. It complies with PROFIBUS DP V1 standard. This communication module enables integration of your drive in your Profibus process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600 (ATV630, ATV650)Altivar Process ATV900 (ATV930, ATV950), Lexium 32, Altivar Easy 610, Altivar 32, Altivar Machine ATV340 and Altivar Machine ATV320. Removable module allows last minute decisions on drive communication protocol, facilitates installation project management. It weighs 140g.

Specifications

Range of Product: Altivar
Product or Component Type: Communication module
range compatibility: Altivar 32, Altivar Machine ATV340 except Sercos drives, Altivar Easy 610, Lexium 32, Altivar Process ATV900, Altivar Process ATV600, Altivar Machine ATV320, Altivar Process Modular
product compatibility: Lexium 32
communication port protocol: Profibus DP V1
electrical connection: 1 female connector SUB-D 9
Transmission Rate: 9.6 kbps...12 Mbps
Addressing: 1...126 configurable by graphic terminal/SoMove software, Configuration settings
communication service: 4 configurable telegrams, Mapping of the process data from the master, Parameters management compliant with PROFIdrive V4.1, Several DP V1 messaging modes, Drive profile native ATV32 IEC 61800-7-201 (CiA 402)
display type: 1 LED RUN, 1 LED bus fault (BF)
diagnostic function: Diagnostic data with VSD status, Host drive handled from two masters (MS0 and MS1), Standard identification and maintenance requests
Bus profile: PROFIdrive, CiA 402
standards: IEC 61800-7-201 (CiA 402)
Category: 18263-LEXIUM 32 ACCESSORIES
Discount Schedule: PC51
GTIN: 3606480177583
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.85 in (4.7 cm)
Package 1 Width: 2.40 in (6.1 cm)
Package 1 Length: 3.54 in (9.0 cm)
Package 1 Weight: 2.15 oz (61.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 100
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 14.99 lb(US) (6.798 kg)
Warranty: 18 months
