VW3A3601 | Ethercat 2 x RJ45 communication module | Square D by Schneider Electric

Brand: Square DSKU: VW3A3601
Square D | VW3A3601

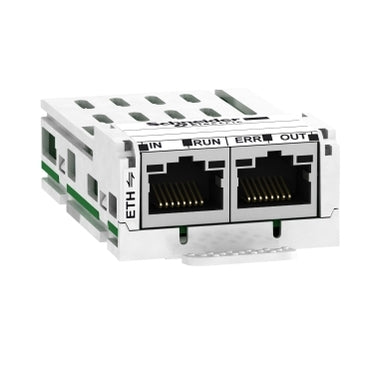

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VW3A3601

Overview Details for VW3A3601

Ethercat 2 x RJ45 communication module

This Schneider Electric Altivar EtherCAT communication module has 2 ports with RJ45 connectors. This communication module enables integration of your drive in your EtherCAT process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV930 & ATV950, Altivar 32, Lexium 32, Altivar Machine ATV320 and Altivar Machine ATV340. It weighs 0.29kg.

Specifications

Range of Product
Altivar
Product or Component Type
Communication module
range compatibility
Altivar Process Modular, Altivar Machine ATV340 except Sercos drives, Altivar Machine ATV320, Altivar Process ATV900, Altivar 32, Lexium 32
product compatibility
Lexium 32
Communication Port Protocol
EtherCAT
electrical connection
2 connectors RJ45
Transmission Rate
100 Mbps
maximum cable distance between devices
328.08 ft (100 m) 100 Mbps
Addressing
Logical addressing, Node addressing, Position addressing
communication service
PDO and SDO support, Drive profile CiA 402 velocity mode IEC 61800-7-201 (CiA 402), CANopen over EtherCAT (CoE)
display type
1 LED input status, 1 LED RUN, 1 LED error, 1 LED output status
standards
IEC 61800-7-201 (CiA 402)
Category
18263-LEXIUM 32 ACCESSORIES
Discount Schedule
PC51
GTIN
3606480326714
Returnability
Yes
Country of origin
CN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.48 in (6.3 cm)
Package 1 Width
1.77 in (4.5 cm)
Package 1 Length
3.54 in (9.0 cm)
Package 1 Weight
2.12 oz (60.0 g)
Unit Type of Package 2
S03
Number of Units in Package 2
100
Package 2 Height
11.81 in (30.0 cm)
Package 2 Width
11.81 in (30.0 cm)
Package 2 Length
15.75 in (40.0 cm)
Package 2 Weight
14.51 lb(US) (6.58 kg)
Warranty
18 months
