VLSH3S7NRD | Disconnect switch, TeSys VLS, pistol grip handle, 70 mm diameter, screw mounting, red handle, 7 mm shaft, defeatable | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VLSH3S7NRD
Overview
Details for VLSH3S7NRD

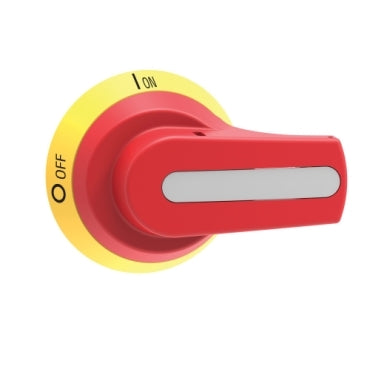

Disconnect switch, TeSys VLS, pistol grip handle, 70 mm diameter, screw mounting, red handle, 7 mm shaft, defeatable
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This red pistol grip rotary handle will work with a VLS3P032R2, VLS3P063R2, VLS3P080R2, VLS3P100R2 or VLS3P125R2 DIN rail mount disconnect switch. Handle is defeatable per 60947-4-1. 7 mm shafts are used with this handle. The front plate is yellow in color. Handle is mounted using four screws. Handle is marked 0 / OFF - 1 / ON. Handle is 2.99 inches tall, 4.08 inches wide and 2.98 inches deep. The handle weighs 0.31 lbs. This handle is NEMA 1, 4 and 4X rated and IP65 rated. This handle is cULus Listed and meets IEC 60947-3 requirements.Specifications
- Range
- TeSys
- Device short name
- VLSH
- Product or Component Type
- Rotary handle
- range compatibility
- TeSys (TeSys VARIO LS) VLS3P
- Handle colour
- Red
- Handle front plate colour
- Yellow
- Width
- 1.80 in (45.7 mm)
- Length
- 4.08 in (103.6 mm)
- Category
- 21734-TESYS VLS DISCONNECT SWITCHES
- Discount Schedule
- CP1
- GTIN
- 3606481818300
- Returnability
- Yes
- Country of origin
- IT
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.99 in (7.6 cm)
- Package 1 Width
- 1.81 in (4.6 cm)
- Package 1 Length
- 4.09 in (10.4 cm)
- Package 1 Weight
- 6.35 oz (180.0 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 18
- Package 2 Height
- 11.81 in (30.0 cm)
- Package 2 Width
- 11.81 in (30.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 10.32 lb(US) (4.68 kg)
